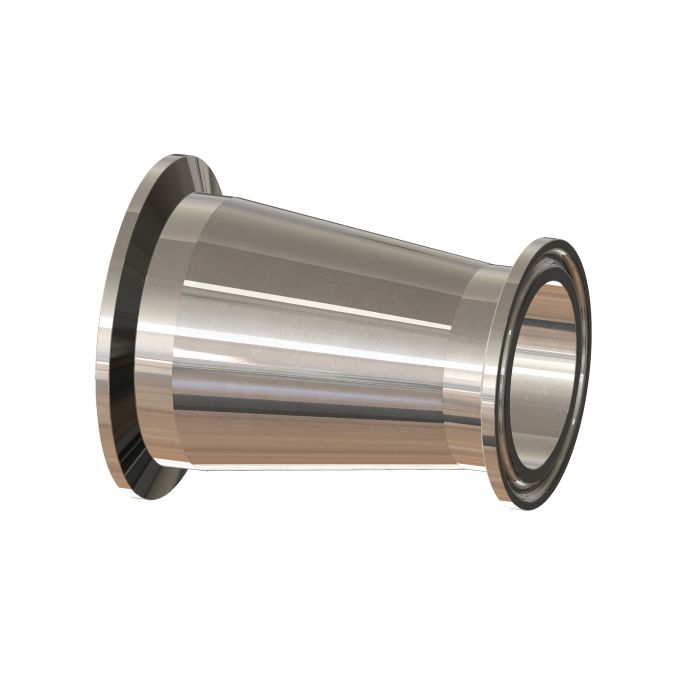

T3114MP250100PM - Dixon 2-1/2" X 1" - BioPharm Clamp x Clamp Concentric Reducer - LJI Part: T3114MP250100PM

Dixon's Bradford High Purity BioPharm line covers the fittings that have to be certified rather than merely clean. Here that means a 2-1/2" x 1" concentric reducer, clamp x clamp, finished to PM.

• Size: 2-1/2" x 1" tube OD
• Material: 316L stainless steel, controlled sulphur to meet orbital welding specifications
• Surface finish: PM finish, SF4
• Manufactured to the latest edition of the ASME BPE International Standard, Bioprocessing Equipment
• Meets 3-A Sanitary Standards for Sanitary Fittings, Number 63-03 (authorization number 621)
• End connections: clamp x clamp
• Marked with job number, 316L, part number, heat number, surface finish code and ASME BPE
• Material test report (MTR) included and traceable through the job number
• PM fittings are capped in white to prevent damage and contamination
