T3114MP250200PL - Dixon 2-1/2" X 2" - BioPharm Clamp x Clamp Concentric Reducer - LJI Part: T3114MP250200PL
SKU
T3114MP250200PL
SKU
T3114MP250200PL
$82.46
| Brand | : Dixon |
|---|---|
| Size | : 2-1/2 Inch X 2 Inch |
| Type | : Concentric Reducers |
| Vendor Number | : T3114MP250200PL |

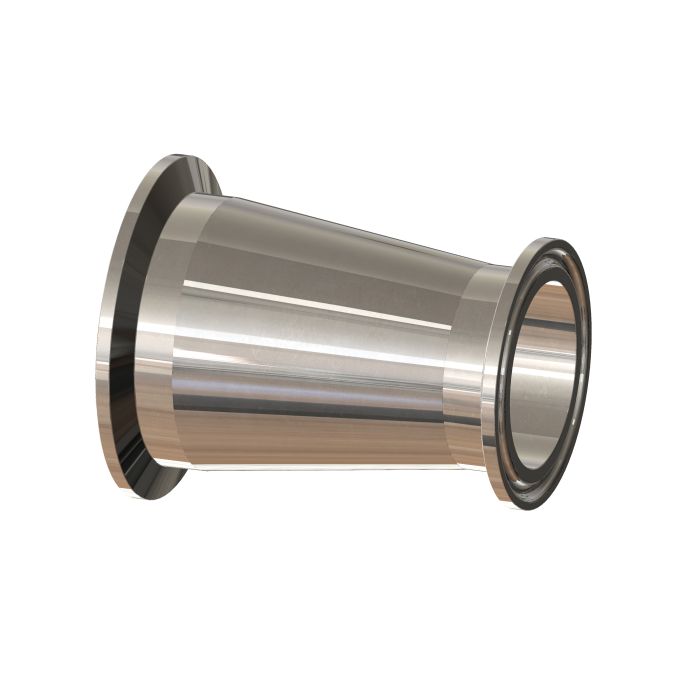

2-1/2" x 2" concentric reducer from Dixon's Bradford BioPharm line, clamp x clamp ends, 316L with controlled sulphur and a PL finish, SF1 (32 Ra OD, 20 Ra ID).
A validated line does not tolerate an unmarked fitting. This concentric reducer carries its job number, heat number, surface finish code and ASME BPE marking, and steps 2-1/2" tube OD to 2".
- Size: 2-1/2" x 2" tube OD
- Material: 316L stainless steel, controlled sulphur to meet orbital welding specifications
- Surface finish: PL finish, SF1 (32 Ra OD, 20 Ra ID)
- Manufactured to the latest edition of the ASME BPE International Standard, Bioprocessing Equipment
- Meets 3-A Sanitary Standards for Sanitary Fittings, Number 63-03 (authorization number 621)
- End connections: clamp x clamp
- Marked with job number, 316L, part number, heat number, surface finish code and ASME BPE
- Material test report (MTR) included and traceable through the job number
- PL fittings are capped in blue to prevent damage and contamination
