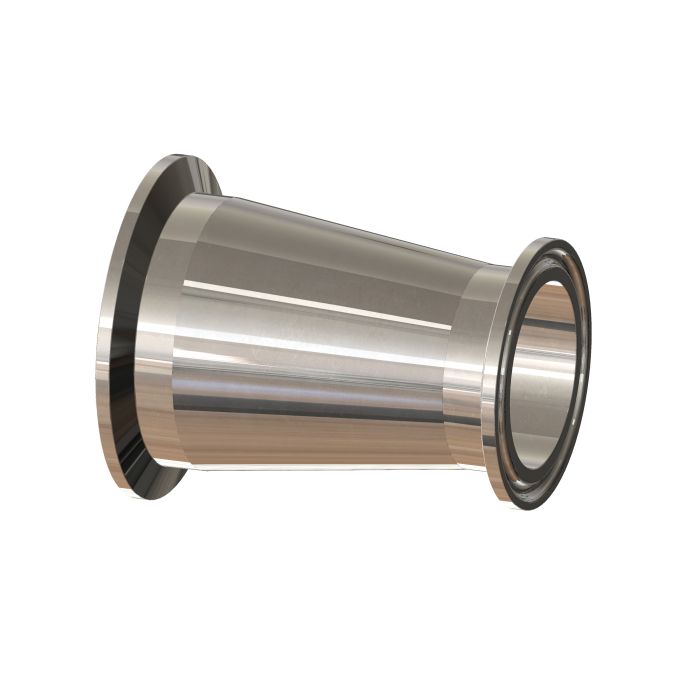

T3114MP250075PL - Dixon 2-1/2" X 3/4" - BioPharm Clamp x Clamp Concentric Reducer - LJI Part: T3114MP250075PL

Pharmaceutical, bioprocessing, semiconductor, cosmetics, food and beverage lines all end up specifying the same thing: traceable 316L with a documented finish. This concentric reducer takes 2-1/2" tube OD to 3/4" on clamp x clamp ends.

• Size: 2-1/2" x 3/4" tube OD
• Material: 316L stainless steel, controlled sulphur to meet orbital welding specifications
• Surface finish: PL finish, SF1 (32 Ra OD, 20 Ra ID)
• Manufactured to the latest edition of the ASME BPE International Standard, Bioprocessing Equipment
• Meets 3-A Sanitary Standards for Sanitary Fittings, Number 63-03 (authorization number 621)
• End connections: clamp x clamp
• Marked with job number, 316L, part number, heat number, surface finish code and ASME BPE
• Material test report (MTR) included and traceable through the job number
• PL fittings are capped in blue to prevent damage and contamination
