T3114MP300100PL - Dixon 3" X 1" - BioPharm Clamp x Clamp Concentric Reducer - LJI Part: T3114MP300100PL
SKU
T3114MP300100PL
SKU
T3114MP300100PL
$155.10
| Brand | : Dixon |
|---|---|
| Size | : 3 Inch X 1 Inch |
| Type | : Concentric Reducers |
| Material | : 316 Stainless Steel |
| Vendor Number | : T3114MP300100PL |

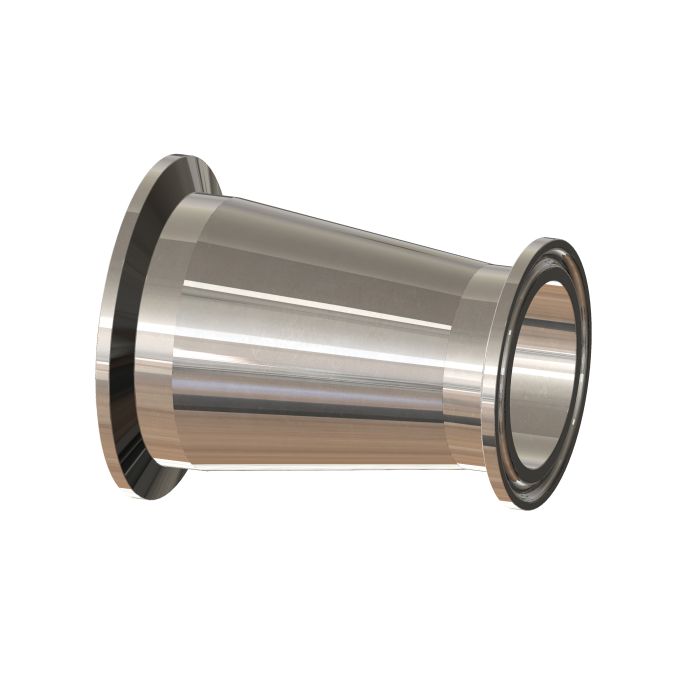

Dixon Bradford BioPharm, 3" x 1". A concentric reducer in controlled-sulphur 316L for orbital welding, finished to PL.
In bioprocess piping the surface finish is part of the specification, not a preference. Dixon's Bradford High Purity BioPharm line is built to that standard, and this concentric reducer carries a 3" tube OD line into 1" on clamp x clamp connections.
- Size: 3" x 1" tube OD
- Material: 316L stainless steel, controlled sulphur to meet orbital welding specifications
- Surface finish: PL finish, SF1 (32 Ra OD, 20 Ra ID)
- Manufactured to the latest edition of the ASME BPE International Standard, Bioprocessing Equipment
- Meets 3-A Sanitary Standards for Sanitary Fittings, Number 63-03 (authorization number 621)
- End connections: clamp x clamp
- Marked with job number, 316L, part number, heat number, surface finish code and ASME BPE
- Material test report (MTR) included and traceable through the job number
- PL fittings are capped in blue to prevent damage and contamination
