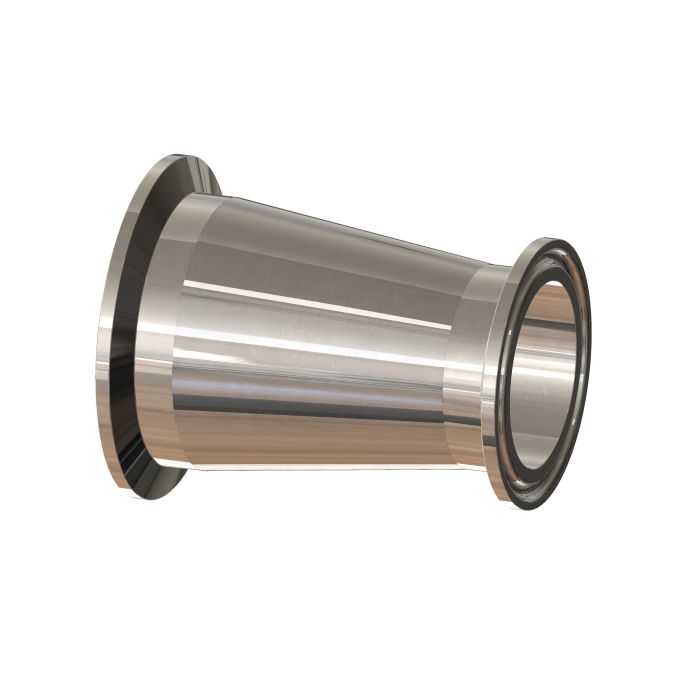

T3114MP300100PM - Dixon 3" X 1" - BioPharm Clamp x Clamp Concentric Reducer - LJI Part: T3114MP300100PM

Controlled sulphur content is what makes 316L weld predictably on an orbital head, and it is why the BioPharm line specifies it. This 3" x 1" concentric reducer connects clamp x clamp.

• Size: 3" x 1" tube OD
• Material: 316L stainless steel, controlled sulphur to meet orbital welding specifications
• Surface finish: PM finish, SF4
• Manufactured to the latest edition of the ASME BPE International Standard, Bioprocessing Equipment
• Meets 3-A Sanitary Standards for Sanitary Fittings, Number 63-03 (authorization number 621)
• End connections: clamp x clamp
• Marked with job number, 316L, part number, heat number, surface finish code and ASME BPE
• Material test report (MTR) included and traceable through the job number
• PM fittings are capped in white to prevent damage and contamination
