T3114MP400150PM - Dixon 4" X 1-1/2" - BioPharm Clamp x Clamp Concentric Reducer - LJI Part: T3114MP400150PM
SKU
T3114MP400150PM
SKU
T3114MP400150PM
$304.92
| Brand | : Dixon |
|---|---|
| Size | : 4 Inch X 1-1/2 Inch |
| Type | : Concentric Reducers |
| Vendor Number | : T3114MP400150PM |

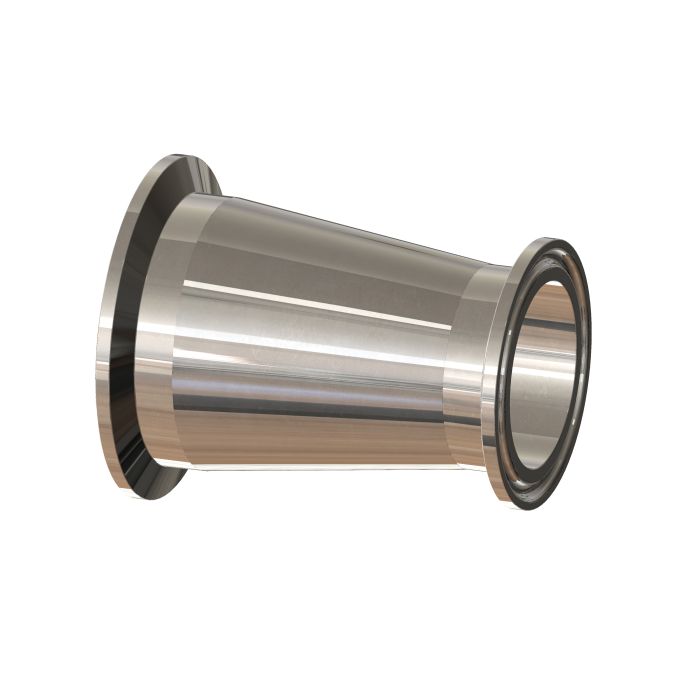

High purity concentric reducer, 4" to 1-1/2" tube OD, clamp x clamp. Built to the ASME BPE standard with a PM finish, SF4 and full material traceability.
Dixon's Bradford High Purity BioPharm line covers the fittings that have to be certified rather than merely clean. Here that means a 4" x 1-1/2" concentric reducer, clamp x clamp, finished to PM.
- Size: 4" x 1-1/2" tube OD
- Material: 316L stainless steel, controlled sulphur to meet orbital welding specifications
- Surface finish: PM finish, SF4
- Manufactured to the latest edition of the ASME BPE International Standard, Bioprocessing Equipment
- Meets 3-A Sanitary Standards for Sanitary Fittings, Number 63-03 (authorization number 621)
- End connections: clamp x clamp
- Marked with job number, 316L, part number, heat number, surface finish code and ASME BPE
- Material test report (MTR) included and traceable through the job number
- PM fittings are capped in white to prevent damage and contamination
