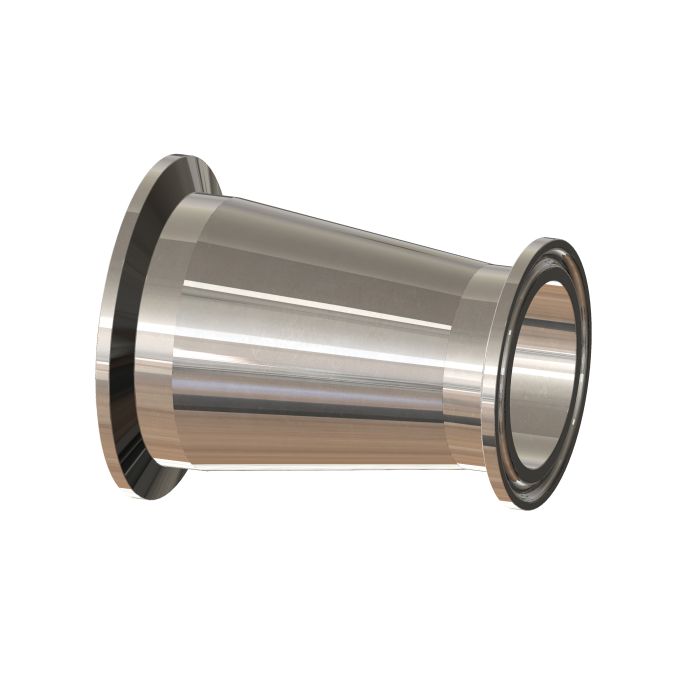

T3114MP400100PL - Dixon 4" X 1" - BioPharm Clamp x Clamp Concentric Reducer - LJI Part: T3114MP400100PL
SKU
T3114MP400100PL
SKU
T3114MP400100PL
$243.31
| Brand | : Dixon |
|---|---|
| Size | : 4 Inch X 1 Inch |
| Type | : Concentric Reducers |
| Material | : 316 Stainless Steel |
| Vendor Number | : T3114MP400100PL |
ASME BPE concentric reducer stepping 4" tube OD to 1" on clamp x clamp connections. 316L, PL finish, SF1 (32 Ra OD, 20 Ra ID), MTR included.
Pl finish, sf1 (32 ra od, 20 ra id), 316L, clamp x clamp ends, 4" down to 1". Each fitting is marked with its job number, heat number and finish code, and arrives capped.
- Size: 4" x 1" tube OD
- Material: 316L stainless steel, controlled sulphur to meet orbital welding specifications
- Surface finish: PL finish, SF1 (32 Ra OD, 20 Ra ID)
- Manufactured to the latest edition of the ASME BPE International Standard, Bioprocessing Equipment
- Meets 3-A Sanitary Standards for Sanitary Fittings, Number 63-03 (authorization number 621)
- End connections: clamp x clamp
- Marked with job number, 316L, part number, heat number, surface finish code and ASME BPE
- Material test report (MTR) included and traceable through the job number
- PL fittings are capped in blue to prevent damage and contamination
