T3114MP400250PM - Dixon 4" x 2-1/2" - BioPharm Clamp x Clamp Concentric Reducer - LJI Part: T3114MP400250PM
SKU
T3114MP400250PM
SKU
T3114MP400250PM
$272.76
| Brand | : Dixon |
|---|---|
| Size | : 4 Inch X 2-1/2 Inch |
| Type | : Concentric Reducers |
| Vendor Number | : T3114MP400250PM |

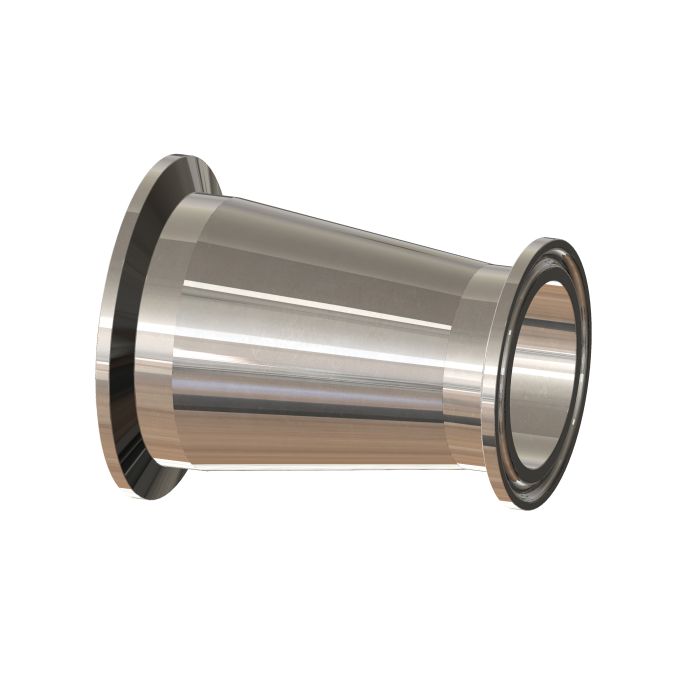

4" x 2-1/2" concentric reducer from Dixon's Bradford BioPharm line, clamp x clamp ends, 316L with controlled sulphur and a PM finish, SF4.
Controlled sulphur content is what makes 316L weld predictably on an orbital head, and it is why the BioPharm line specifies it. This 4" x 2-1/2" concentric reducer connects clamp x clamp.
- Size: 4" x 2-1/2" tube OD
- Material: 316L stainless steel, controlled sulphur to meet orbital welding specifications
- Surface finish: PM finish, SF4
- Manufactured to the latest edition of the ASME BPE International Standard, Bioprocessing Equipment
- Meets 3-A Sanitary Standards for Sanitary Fittings, Number 63-03 (authorization number 621)
- End connections: clamp x clamp
- Marked with job number, 316L, part number, heat number, surface finish code and ASME BPE
- Material test report (MTR) included and traceable through the job number
- PM fittings are capped in white to prevent damage and contamination
