T3114MP400200PL - Dixon 4" X 2" - BioPharm Clamp x Clamp Concentric Reducer - LJI Part: T3114MP400200PL
SKU
T3114MP400200PL
SKU
T3114MP400200PL
$213.97
| Brand | : Dixon |
|---|---|
| Size | : 4 Inch X 2 Inch |
| Type | : Concentric Reducers |
| Material | : 316 Stainless Steel |
| Vendor Number | : T3114MP400200PL |

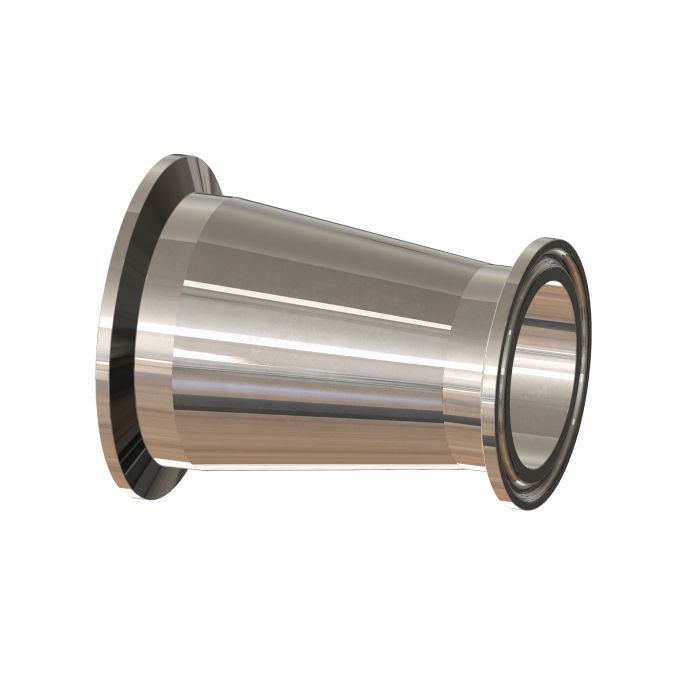

Concentric reducer, 4" x 2" tube OD, clamp x clamp ends. Part of Dixon's Bradford High Purity BioPharm line with a PL finish, SF1 (32 Ra OD, 20 Ra ID).
Every fitting in the Bradford BioPharm line arrives with a material test report traceable through its job number. This concentric reducer steps 4" tube OD down to 2", clamp x clamp.
- Size: 4" x 2" tube OD
- Material: 316L stainless steel, controlled sulphur to meet orbital welding specifications
- Surface finish: PL finish, SF1 (32 Ra OD, 20 Ra ID)
- Manufactured to the latest edition of the ASME BPE International Standard, Bioprocessing Equipment
- Meets 3-A Sanitary Standards for Sanitary Fittings, Number 63-03 (authorization number 621)
- End connections: clamp x clamp
- Marked with job number, 316L, part number, heat number, surface finish code and ASME BPE
- Material test report (MTR) included and traceable through the job number
- PL fittings are capped in blue to prevent damage and contamination
