T3114MP400300PL - Dixon 4" x 3" - BioPharm Clamp x Clamp Concentric Reducer - LJI Part: T3114MP400300PL
SKU
T3114MP400300PL
SKU
T3114MP400300PL
$177.66
| Brand | : Dixon |
|---|---|
| Size | : 4 Inch x 3 Inch |
| Type | : Concentric Reducers |
| Material | : 316 Stainless Steel |
| Vendor Number | : T3114MP400300PL |

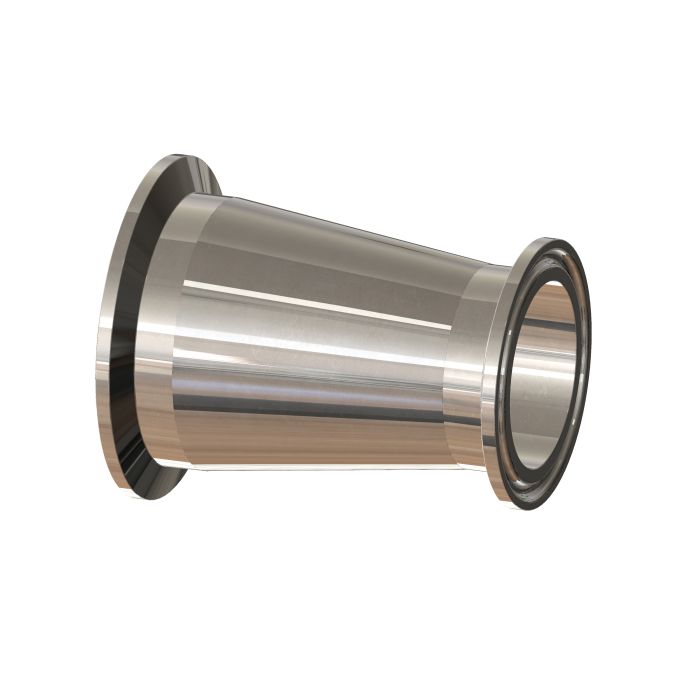

Concentric reducer, 4" x 3" tube OD, clamp x clamp ends. Part of Dixon's Bradford High Purity BioPharm line with a PL finish, SF1 (32 Ra OD, 20 Ra ID).
In bioprocess piping the surface finish is part of the specification, not a preference. Dixon's Bradford High Purity BioPharm line is built to that standard, and this concentric reducer carries a 4" tube OD line into 3" on clamp x clamp connections.
- Size: 4" x 3" tube OD
- Material: 316L stainless steel, controlled sulphur to meet orbital welding specifications
- Surface finish: PL finish, SF1 (32 Ra OD, 20 Ra ID)
- Manufactured to the latest edition of the ASME BPE International Standard, Bioprocessing Equipment
- Meets 3-A Sanitary Standards for Sanitary Fittings, Number 63-03 (authorization number 621)
- End connections: clamp x clamp
- Marked with job number, 316L, part number, heat number, surface finish code and ASME BPE
- Material test report (MTR) included and traceable through the job number
- PL fittings are capped in blue to prevent damage and contamination
