T31W-250050PM - Dixon 2-1/2" x 1/2" - BioPharm Weld Concentric Reducer Stainless Steel - LJI Part: T31W-250050PM
SKU
T31W-250050PM
SKU
T31W-250050PM
$192.80
| Brand | : Dixon |
|---|---|
| Size | : 2-1/2 Inch X 1/2 Inch |
| Type | : Concentric Reducers |
| Vendor Number | : T31W-250050PM |

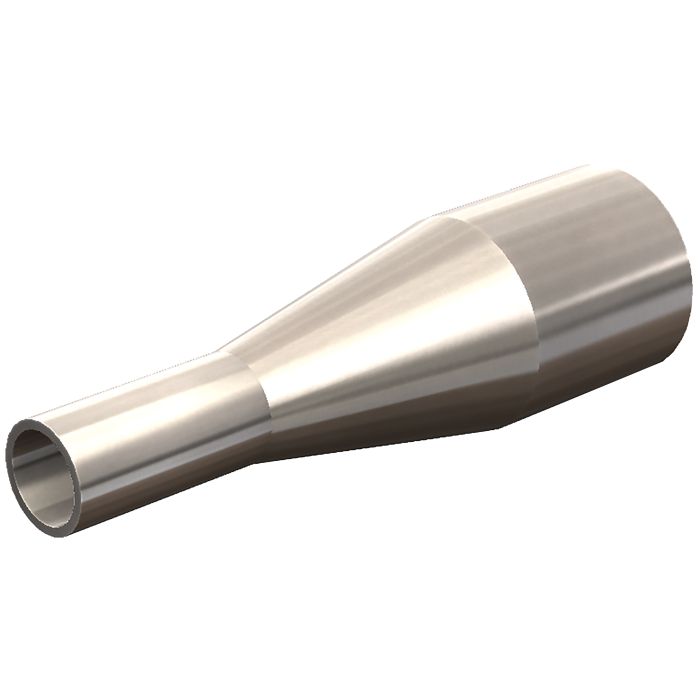

For bioprocess and pharma lines: a 2-1/2" x 1/2" concentric reducer in 316L, PM finish, SF4, manufactured to ASME BPE.
Every fitting in the Bradford BioPharm line arrives with a material test report traceable through its job number. This concentric reducer steps 2-1/2" tube OD down to 1/2", weld x weld.
- Size: 2-1/2" x 1/2" tube OD
- Material: 316L stainless steel, controlled sulphur to meet orbital welding specifications
- Surface finish: PM finish, SF4
- Manufactured to the latest edition of the ASME BPE International Standard, Bioprocessing Equipment
- Meets 3-A Sanitary Standards for Sanitary Fittings, Number 63-03 (authorization number 621)
- End connections: weld x weld
- Marked with job number, 316L, part number, heat number, surface finish code and ASME BPE
- Material test report (MTR) included and traceable through the job number
- PM fittings are capped in white to prevent damage and contamination
