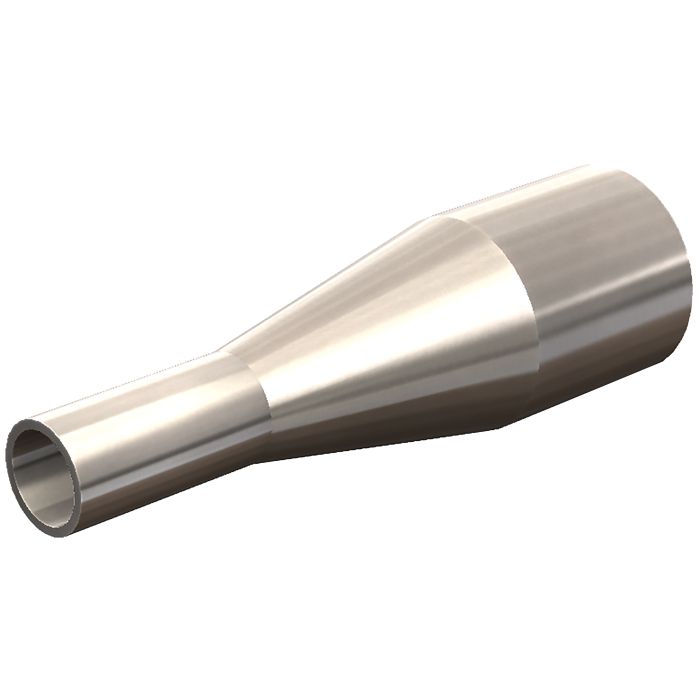

T31W-250100PM - Dixon 2-1/2" x 1" - BioPharm Weld Concentric Reducer Stainless Steel - LJI Part: T31W-250100PM

In bioprocess piping the surface finish is part of the specification, not a preference. Dixon's Bradford High Purity BioPharm line is built to that standard, and this concentric reducer carries a 2-1/2" tube OD line into 1" on weld x weld connections.

• Size: 2-1/2" x 1" tube OD
• Material: 316L stainless steel, controlled sulphur to meet orbital welding specifications
• Surface finish: PM finish, SF4
• Manufactured to the latest edition of the ASME BPE International Standard, Bioprocessing Equipment
• Meets 3-A Sanitary Standards for Sanitary Fittings, Number 63-03 (authorization number 621)
• End connections: weld x weld
• Marked with job number, 316L, part number, heat number, surface finish code and ASME BPE
• Material test report (MTR) included and traceable through the job number
• PM fittings are capped in white to prevent damage and contamination
