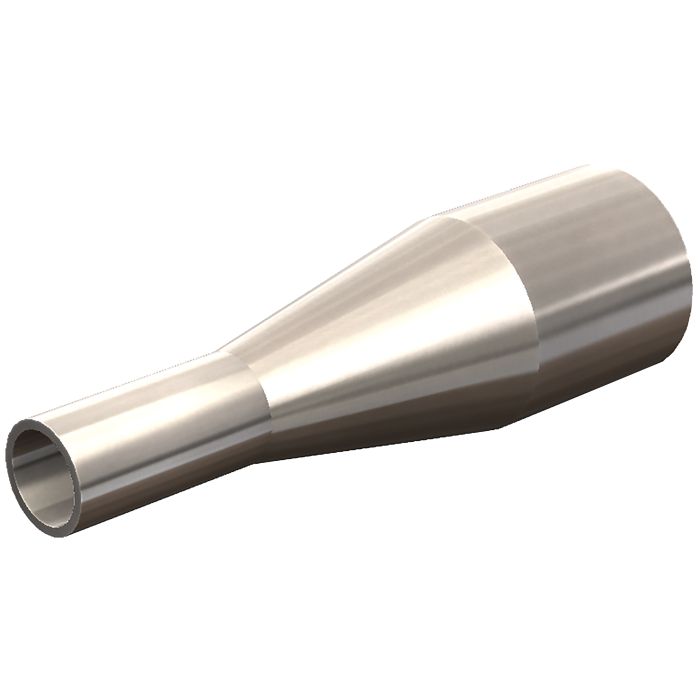

T31W-250150PL - Dixon 2-1/2" x 1-1/2" - BioPharm Weld Concentric Reducer Stainless Steel - LJI Part: T31W-250150PL
SKU
T31W-250150PL
SKU
T31W-250150PL
$93.74
| Brand | : Dixon |
|---|---|
| Size | : 2-1/2 Inch X 1-1/2 Inch |
| Type | : Concentric Reducers |
| Vendor Number | : T31W-250150PL |
2-1/2" x 1-1/2" concentric reducer from Dixon's Bradford BioPharm line, weld x weld ends, 316L with controlled sulphur and a PL finish, SF1 (32 Ra OD, 20 Ra ID).
Dixon's Bradford High Purity BioPharm line covers the fittings that have to be certified rather than merely clean. Here that means a 2-1/2" x 1-1/2" concentric reducer, weld x weld, finished to PL.
- Size: 2-1/2" x 1-1/2" tube OD
- Material: 316L stainless steel, controlled sulphur to meet orbital welding specifications
- Surface finish: PL finish, SF1 (32 Ra OD, 20 Ra ID)
- Manufactured to the latest edition of the ASME BPE International Standard, Bioprocessing Equipment
- Meets 3-A Sanitary Standards for Sanitary Fittings, Number 63-03 (authorization number 621)
- End connections: weld x weld
- Marked with job number, 316L, part number, heat number, surface finish code and ASME BPE
- Material test report (MTR) included and traceable through the job number
- PL fittings are capped in blue to prevent damage and contamination
