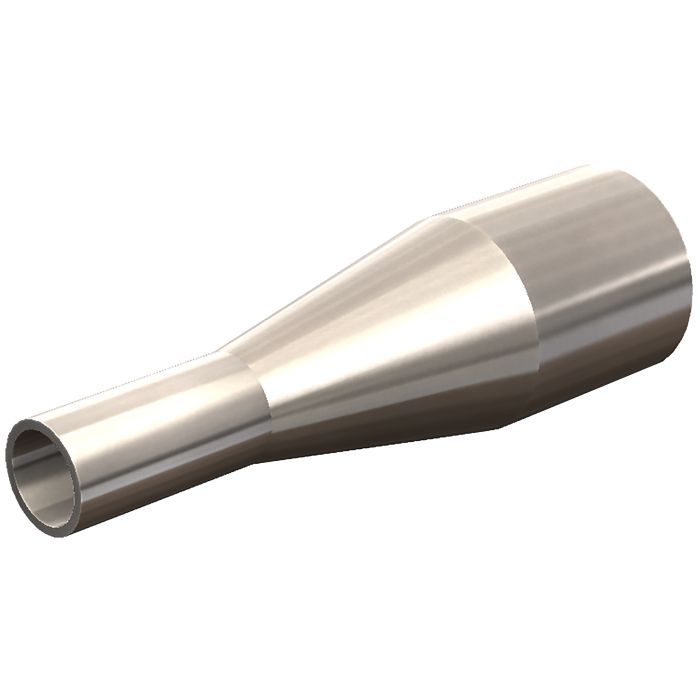

T31W-250200PL - Dixon 2-1/2" X 2" - BioPharm Weld Concentric Reducer Stainless Steel - LJI Part: T31W-250200PL
SKU
T31W-250200PL
SKU
T31W-250200PL
$81.37
| Brand | : Dixon |
|---|---|
| Size | : 2-1/2 Inch X 2 Inch |
| Type | : Concentric Reducers |
| Vendor Number | : T31W-250200PL |
For bioprocess and pharma lines: a 2-1/2" x 2" concentric reducer in 316L, PL finish, SF1 (32 Ra OD, 20 Ra ID), manufactured to ASME BPE.
Controlled sulphur content is what makes 316L weld predictably on an orbital head, and it is why the BioPharm line specifies it. This 2-1/2" x 2" concentric reducer connects weld x weld.
- Size: 2-1/2" x 2" tube OD
- Material: 316L stainless steel, controlled sulphur to meet orbital welding specifications
- Surface finish: PL finish, SF1 (32 Ra OD, 20 Ra ID)
- Manufactured to the latest edition of the ASME BPE International Standard, Bioprocessing Equipment
- Meets 3-A Sanitary Standards for Sanitary Fittings, Number 63-03 (authorization number 621)
- End connections: weld x weld
- Marked with job number, 316L, part number, heat number, surface finish code and ASME BPE
- Material test report (MTR) included and traceable through the job number
- PL fittings are capped in blue to prevent damage and contamination
