T31W-300100PM - Dixon 3" X 1" - BioPharm Weld Concentric Reducer Stainless Steel - LJI Part: T31W-300100PM
SKU
T31W-300100PM
SKU
T31W-300100PM
$200.80
| Brand | : Dixon |
|---|---|
| Size | : 3 Inch X 1 Inch |
| Type | : Concentric Reducers |
| Vendor Number | : T31W-300100PM |

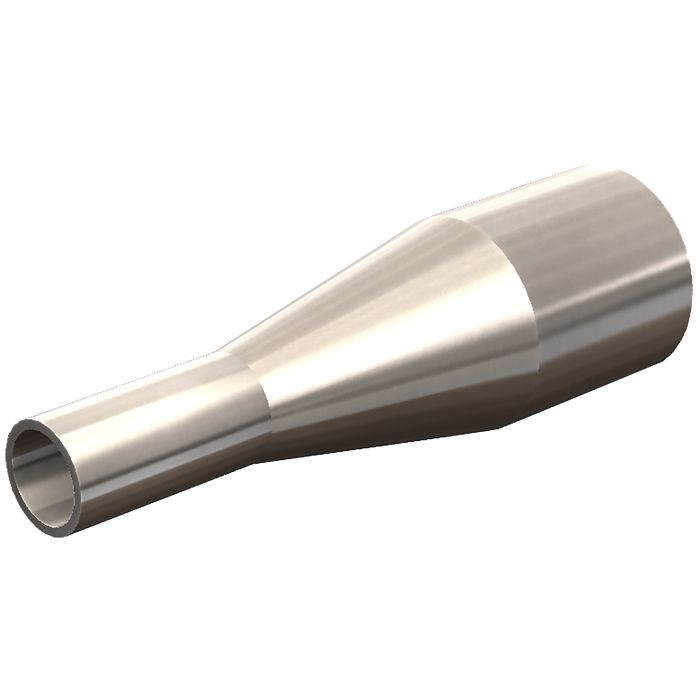

Concentric reducer, 3" x 1" tube OD, weld x weld ends. Part of Dixon's Bradford High Purity BioPharm line with a PM finish, SF4.
Dixon's Bradford High Purity BioPharm line covers the fittings that have to be certified rather than merely clean. Here that means a 3" x 1" concentric reducer, weld x weld, finished to PM.
- Size: 3" x 1" tube OD
- Material: 316L stainless steel, controlled sulphur to meet orbital welding specifications
- Surface finish: PM finish, SF4
- Manufactured to the latest edition of the ASME BPE International Standard, Bioprocessing Equipment
- Meets 3-A Sanitary Standards for Sanitary Fittings, Number 63-03 (authorization number 621)
- End connections: weld x weld
- Marked with job number, 316L, part number, heat number, surface finish code and ASME BPE
- Material test report (MTR) included and traceable through the job number
- PM fittings are capped in white to prevent damage and contamination
