T31W-300150PM - Dixon 3" X 1-1/2" - BioPharm Weld Concentric Reducer Stainless Steel - LJI Part: T31W-300150PM
SKU
T31W-300150PM
SKU
T31W-300150PM
$189.44
| Brand | : Dixon |
|---|---|
| Size | : 3 Inch X 1-1/2 Inch |
| Type | : Concentric Reducers |
| Vendor Number | : T31W-300150PM |

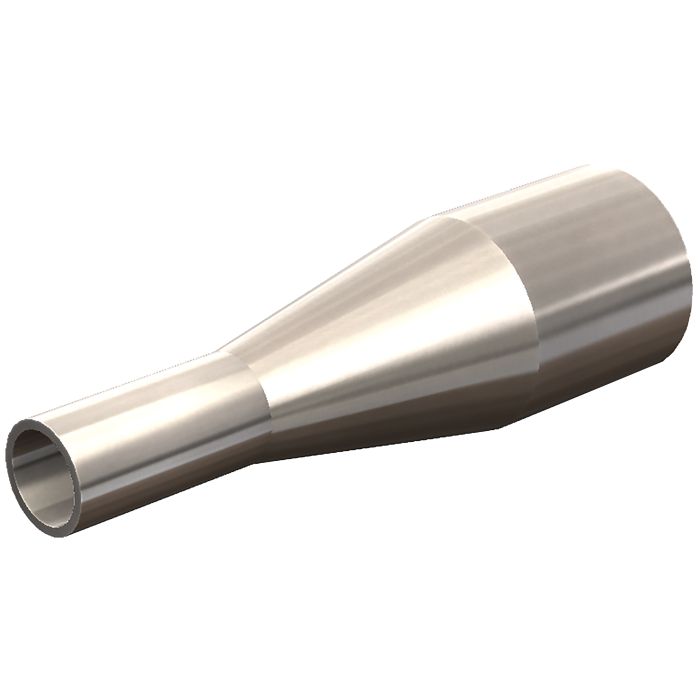

3" x 1-1/2" concentric reducer from Dixon's Bradford BioPharm line, weld x weld ends, 316L with controlled sulphur and a PM finish, SF4.
Orbital welding is unforgiving of inconsistent material, which is the whole reason the BioPharm line runs controlled-sulphur 316L. This 3" x 1-1/2" concentric reducer connects weld x weld.
- Size: 3" x 1-1/2" tube OD
- Material: 316L stainless steel, controlled sulphur to meet orbital welding specifications
- Surface finish: PM finish, SF4
- Manufactured to the latest edition of the ASME BPE International Standard, Bioprocessing Equipment
- Meets 3-A Sanitary Standards for Sanitary Fittings, Number 63-03 (authorization number 621)
- End connections: weld x weld
- Marked with job number, 316L, part number, heat number, surface finish code and ASME BPE
- Material test report (MTR) included and traceable through the job number
- PM fittings are capped in white to prevent damage and contamination
