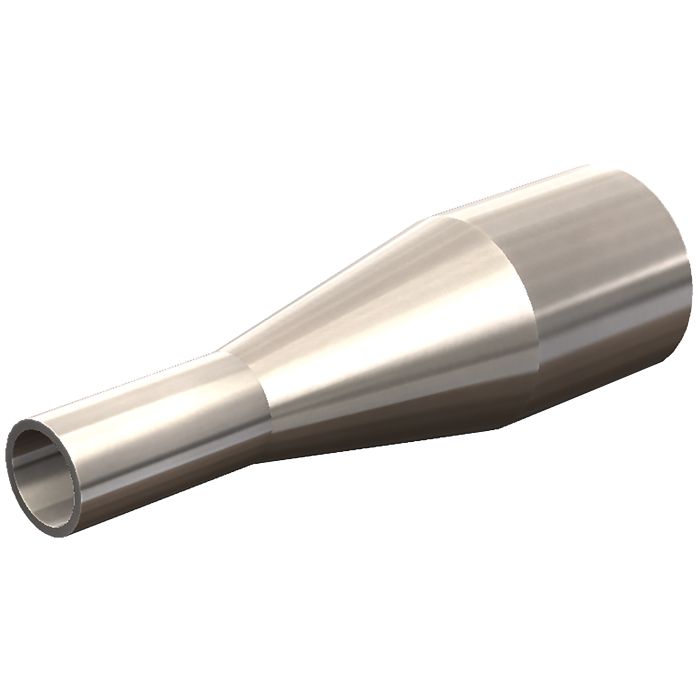

T31W-300250PL - Dixon 3"X 2-1/2" - BioPharm Weld Concentric Reducer Stainless Steel - LJI Part: T31W-300250PL

Dixon's Bradford High Purity BioPharm line covers the fittings that have to be certified rather than merely clean. Here that means a 3" x 2-1/2" concentric reducer, weld x weld, finished to PL.

• Size: 3" x 2-1/2" tube OD
• Material: 316L stainless steel, controlled sulphur to meet orbital welding specifications
• Surface finish: PL finish, SF1 (32 Ra OD, 20 Ra ID)
• Manufactured to the latest edition of the ASME BPE International Standard, Bioprocessing Equipment
• Meets 3-A Sanitary Standards for Sanitary Fittings, Number 63-03 (authorization number 621)
• End connections: weld x weld
• Marked with job number, 316L, part number, heat number, surface finish code and ASME BPE
• Material test report (MTR) included and traceable through the job number
• PL fittings are capped in blue to prevent damage and contamination
