T31W-400100PM - Dixon 4" x 1" - BioPharm Weld Concentric Reducer Stainless Steel - LJI Part: T31W-400100PM
SKU
T31W-400100PM
SKU
T31W-400100PM
$355.21
| Brand | : Dixon |
|---|---|
| Size | : 4 Inch X 1 Inch |
| Type | : Concentric Reducers |
| Vendor Number | : T31W-400100PM |

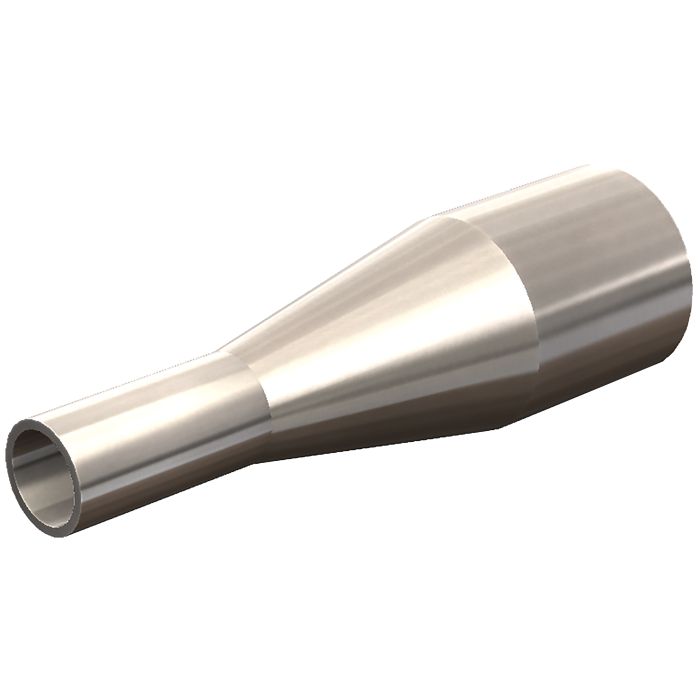

Dixon Bradford BioPharm, 4" x 1". A concentric reducer in controlled-sulphur 316L for orbital welding, finished to PM.
Pm finish, sf4, 316L, weld x weld ends, 4" down to 1". Each fitting is marked with its job number, heat number and finish code, and arrives capped.
- Size: 4" x 1" tube OD
- Material: 316L stainless steel, controlled sulphur to meet orbital welding specifications
- Surface finish: PM finish, SF4
- Manufactured to the latest edition of the ASME BPE International Standard, Bioprocessing Equipment
- Meets 3-A Sanitary Standards for Sanitary Fittings, Number 63-03 (authorization number 621)
- End connections: weld x weld
- Marked with job number, 316L, part number, heat number, surface finish code and ASME BPE
- Material test report (MTR) included and traceable through the job number
- PM fittings are capped in white to prevent damage and contamination
