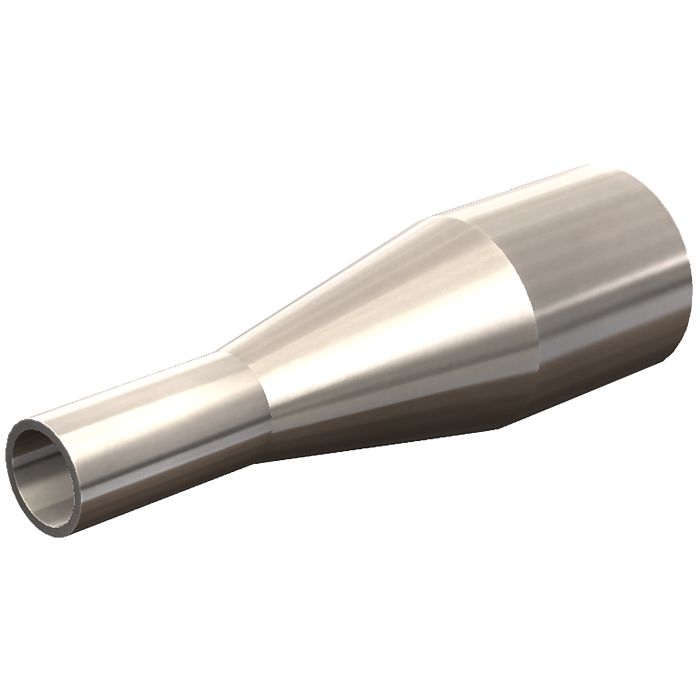

T31W-400150PM - Dixon 4" x 1-1/2" - BioPharm Weld Concentric Reducer Stainless Steel - LJI Part: T31W-400150PM
SKU
T31W-400150PM
SKU
T31W-400150PM
$338.96
| Brand | : Dixon |
|---|---|
| Size | : 4 Inch X 1-1/2 Inch |
| Type | : Concentric Reducers |
| Vendor Number | : T31W-400150PM |
For bioprocess and pharma lines: a 4" x 1-1/2" concentric reducer in 316L, PM finish, SF4, manufactured to ASME BPE.
A validated line does not tolerate an unmarked fitting. This concentric reducer carries its job number, heat number, surface finish code and ASME BPE marking, and steps 4" tube OD to 1-1/2".
- Size: 4" x 1-1/2" tube OD
- Material: 316L stainless steel, controlled sulphur to meet orbital welding specifications
- Surface finish: PM finish, SF4
- Manufactured to the latest edition of the ASME BPE International Standard, Bioprocessing Equipment
- Meets 3-A Sanitary Standards for Sanitary Fittings, Number 63-03 (authorization number 621)
- End connections: weld x weld
- Marked with job number, 316L, part number, heat number, surface finish code and ASME BPE
- Material test report (MTR) included and traceable through the job number
- PM fittings are capped in white to prevent damage and contamination
