T31W-400250PL - Dixon 4" X 2-1/2" - BioPharm Weld Concentric Reducer Stainless Steel - LJI Part: T31W-400250PL
SKU
T31W-400250PL
SKU
T31W-400250PL
$202.49
| Brand | : Dixon |
|---|---|
| Size | : 4 Inch X 2-1/2 Inch |
| Type | : Concentric Reducers |
| Vendor Number | : T31W-400250PL |

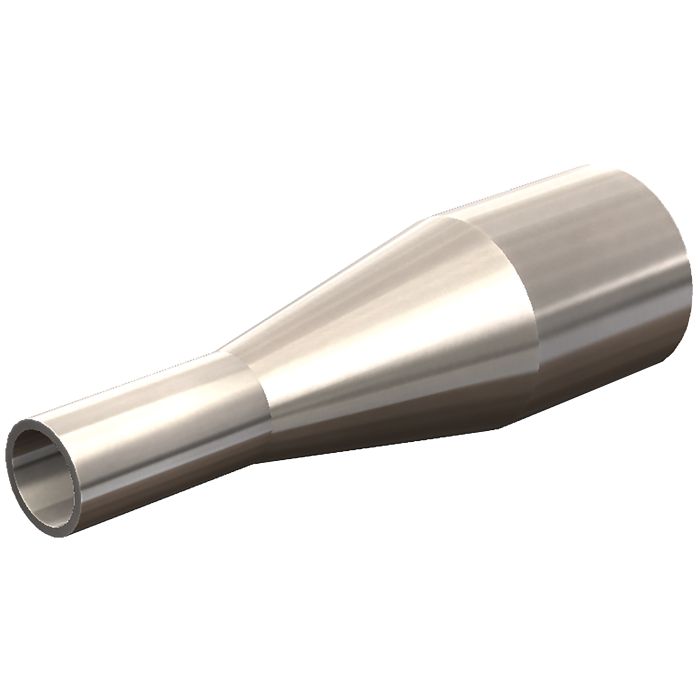

For bioprocess and pharma lines: a 4" x 2-1/2" concentric reducer in 316L, PL finish, SF1 (32 Ra OD, 20 Ra ID), manufactured to ASME BPE.
Orbital welding is unforgiving of inconsistent material, which is the whole reason the BioPharm line runs controlled-sulphur 316L. This 4" x 2-1/2" concentric reducer connects weld x weld.
- Size: 4" x 2-1/2" tube OD
- Material: 316L stainless steel, controlled sulphur to meet orbital welding specifications
- Surface finish: PL finish, SF1 (32 Ra OD, 20 Ra ID)
- Manufactured to the latest edition of the ASME BPE International Standard, Bioprocessing Equipment
- Meets 3-A Sanitary Standards for Sanitary Fittings, Number 63-03 (authorization number 621)
- End connections: weld x weld
- Marked with job number, 316L, part number, heat number, surface finish code and ASME BPE
- Material test report (MTR) included and traceable through the job number
- PL fittings are capped in blue to prevent damage and contamination
