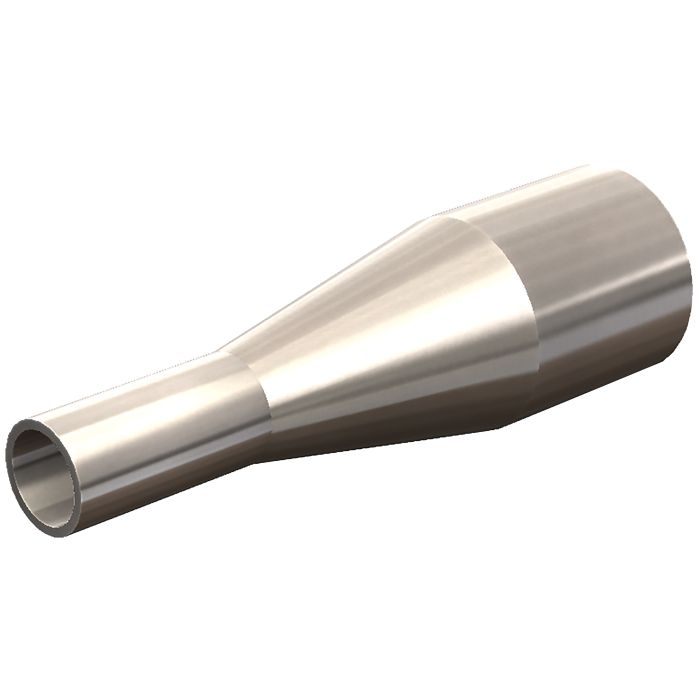

T31W-400300PL - Dixon 4" X 3" - BioPharm Weld Concentric Reducer Stainless Steel - LJI Part: T31W-400300PL
SKU
T31W-400300PL
SKU
T31W-400300PL
$173.28
| Brand | : Dixon |
|---|---|
| Size | : 4 Inch x 3 Inch |
| Type | : Concentric Reducers |
| Vendor Number | : T31W-400300PL |
For bioprocess and pharma lines: a 4" x 3" concentric reducer in 316L, PL finish, SF1 (32 Ra OD, 20 Ra ID), manufactured to ASME BPE.
Pl finish, sf1 (32 ra od, 20 ra id), 316L, weld x weld ends, 4" down to 3". Each fitting is marked with its job number, heat number and finish code, and arrives capped.
- Size: 4" x 3" tube OD
- Material: 316L stainless steel, controlled sulphur to meet orbital welding specifications
- Surface finish: PL finish, SF1 (32 Ra OD, 20 Ra ID)
- Manufactured to the latest edition of the ASME BPE International Standard, Bioprocessing Equipment
- Meets 3-A Sanitary Standards for Sanitary Fittings, Number 63-03 (authorization number 621)
- End connections: weld x weld
- Marked with job number, 316L, part number, heat number, surface finish code and ASME BPE
- Material test report (MTR) included and traceable through the job number
- PL fittings are capped in blue to prevent damage and contamination
