T31W-400300PM - Dixon 4" X 3" - BioPharm Weld Concentric Reducer Stainless Steel - LJI Part: T31W-400300PM
SKU
T31W-400300PM
SKU
T31W-400300PM
$225.20
| Brand | : Dixon |
|---|---|
| Size | : 4 Inch x 3 Inch |
| Type | : Concentric Reducers |
| Vendor Number | : T31W-400300PM |

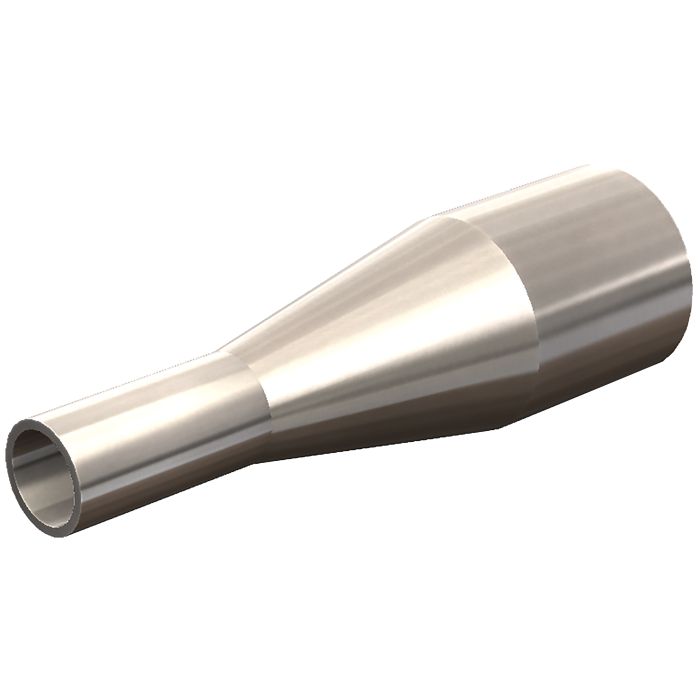

High purity concentric reducer, 4" to 3" tube OD, weld x weld. Built to the ASME BPE standard with a PM finish, SF4 and full material traceability.
Pharmaceutical, bioprocessing, semiconductor, cosmetics, food and beverage lines all end up specifying the same thing: traceable 316L with a documented finish. This concentric reducer takes 4" tube OD to 3" on weld x weld ends.
- Size: 4" x 3" tube OD
- Material: 316L stainless steel, controlled sulphur to meet orbital welding specifications
- Surface finish: PM finish, SF4
- Manufactured to the latest edition of the ASME BPE International Standard, Bioprocessing Equipment
- Meets 3-A Sanitary Standards for Sanitary Fittings, Number 63-03 (authorization number 621)
- End connections: weld x weld
- Marked with job number, 316L, part number, heat number, surface finish code and ASME BPE
- Material test report (MTR) included and traceable through the job number
- PM fittings are capped in white to prevent damage and contamination
