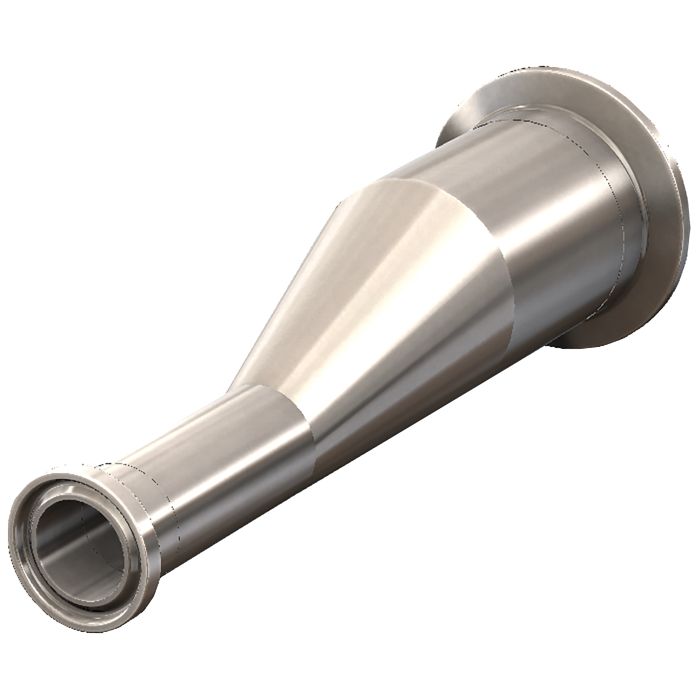

T3214MP250150PL - Dixon 2-1/2" x 1-1/2" - BioPharm Clamp x Clamp Eccentric Reducer Stainless Steel - LJI Part: T3214MP250150PL

Orbital welding is unforgiving of inconsistent material, which is the whole reason the BioPharm line runs controlled-sulphur 316L. This 2-1/2" x 1-1/2" eccentric reducer connects clamp x clamp.

• Size: 2-1/2" x 1-1/2" tube OD
• Material: 316L stainless steel, controlled sulphur to meet orbital welding specifications
• Surface finish: PL finish, SF1 (32 Ra OD, 20 Ra ID)
• Manufactured to the latest edition of the ASME BPE International Standard, Bioprocessing Equipment
• Meets 3-A Sanitary Standards for Sanitary Fittings, Number 63-03 (authorization number 621)
• End connections: clamp x clamp
• Marked with job number, 316L, part number, heat number, surface finish code and ASME BPE
• Material test report (MTR) included and traceable through the job number
• PL fittings are capped in blue to prevent damage and contamination
