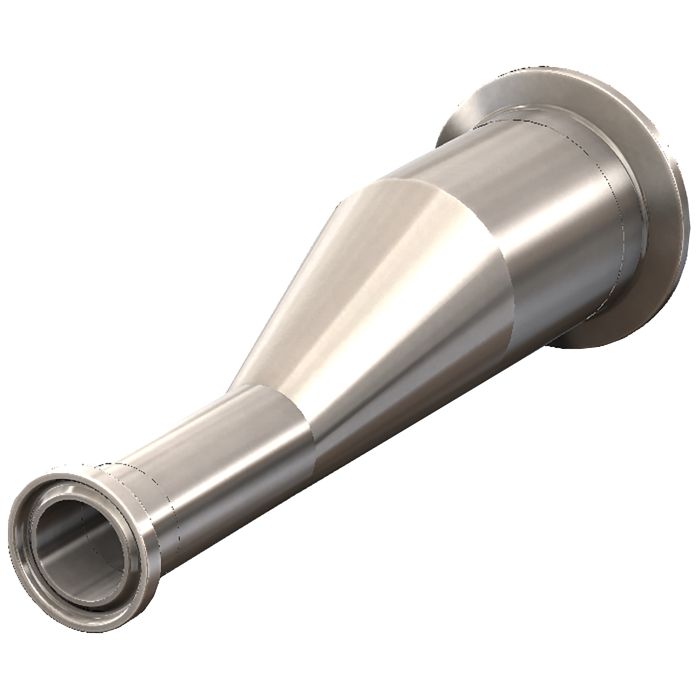

T3214MP250050PM - Dixon 2-1/2" x 1/2" - BioPharm Clamp x Clamp Eccentric Reducer Stainless Steel - LJI Part: T3214MP250050PM

Pharmaceutical, bioprocessing, semiconductor, cosmetics, food and beverage lines all end up specifying the same thing: traceable 316L with a documented finish. This eccentric reducer takes 2-1/2" tube OD to 1/2" on clamp x clamp ends.

• Size: 2-1/2" x 1/2" tube OD
• Material: 316L stainless steel, controlled sulphur to meet orbital welding specifications
• Surface finish: PM finish, SF4
• Manufactured to the latest edition of the ASME BPE International Standard, Bioprocessing Equipment
• Meets 3-A Sanitary Standards for Sanitary Fittings, Number 63-03 (authorization number 621)
• End connections: clamp x clamp
• Marked with job number, 316L, part number, heat number, surface finish code and ASME BPE
• Material test report (MTR) included and traceable through the job number
• PM fittings are capped in white to prevent damage and contamination
