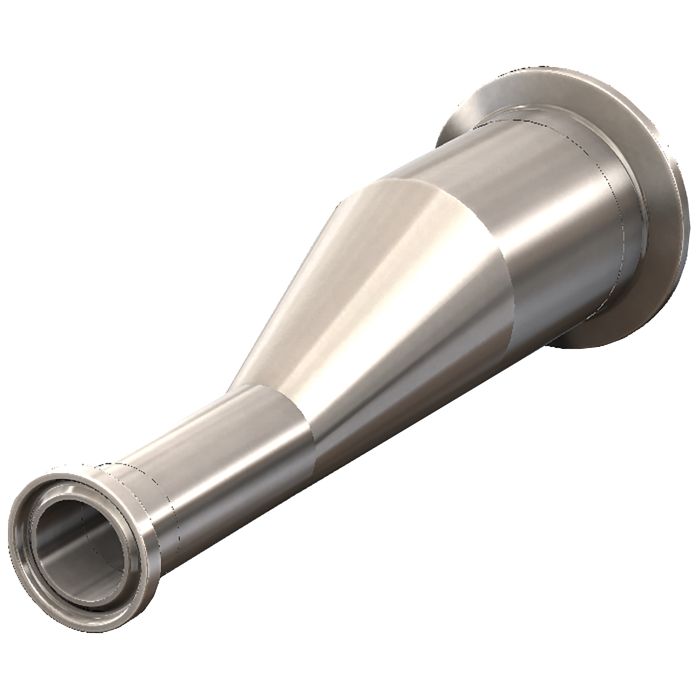

T3214MP250100PL - Dixon 2- 1/2 x 1" - BioPharm Clamp x Clamp Eccentric Reducer Stainless Steel - LJI Part: T3214MP250100PL

In bioprocess piping the surface finish is part of the specification, not a preference. Dixon's Bradford High Purity BioPharm line is built to that standard, and this eccentric reducer carries a 2-1/2" tube OD line into 1" on clamp x clamp connections.

• Size: 2-1/2" x 1" tube OD
• Material: 316L stainless steel, controlled sulphur to meet orbital welding specifications
• Surface finish: PL finish, SF1 (32 Ra OD, 20 Ra ID)
• Manufactured to the latest edition of the ASME BPE International Standard, Bioprocessing Equipment
• Meets 3-A Sanitary Standards for Sanitary Fittings, Number 63-03 (authorization number 621)
• End connections: clamp x clamp
• Marked with job number, 316L, part number, heat number, surface finish code and ASME BPE
• Material test report (MTR) included and traceable through the job number
• PL fittings are capped in blue to prevent damage and contamination
