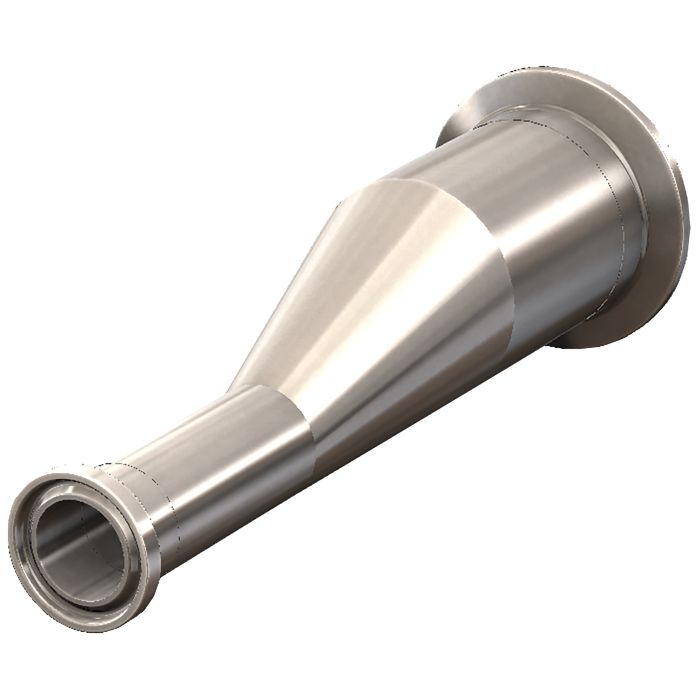

T3214MP400300PM - Dixon 4" x 3" - BioPharm Clamp x Clamp Eccentric Reducer Stainless Steel - LJI Part: T3214MP400300PM
SKU
T3214MP400300PM
SKU
T3214MP400300PM
$262.70
| Brand | : Dixon |
|---|---|
| Size | : 4 Inch x 3 Inch |
| Type | : Eccentric Reducers |
| Material | : 316 Stainless Steel |
| Vendor Number | : T3214MP400300PM |
ASME BPE eccentric reducer stepping 4" tube OD to 3" on clamp x clamp connections. 316L, PM finish, SF4, MTR included.
A validated line does not tolerate an unmarked fitting. This eccentric reducer carries its job number, heat number, surface finish code and ASME BPE marking, and steps 4" tube OD to 3".
- Size: 4" x 3" tube OD
- Material: 316L stainless steel, controlled sulphur to meet orbital welding specifications
- Surface finish: PM finish, SF4
- Manufactured to the latest edition of the ASME BPE International Standard, Bioprocessing Equipment
- Meets 3-A Sanitary Standards for Sanitary Fittings, Number 63-03 (authorization number 621)
- End connections: clamp x clamp
- Marked with job number, 316L, part number, heat number, surface finish code and ASME BPE
- Material test report (MTR) included and traceable through the job number
- PM fittings are capped in white to prevent damage and contamination
