T32W-300100PL - Dixon 3" X 1" - BioPharm Weld x Weld Eccentric Reducer High Purity Stainless Steel - LJI Part: T32W-300100PL
SKU
T32W-300100PL
SKU
T32W-300100PL
$180.15
| Brand | : Dixon |
|---|---|
| Size | : 3 Inch X 1 Inch |
| Type | : Eccentric Reducers |
| Vendor Number | : T32W-300100PL |

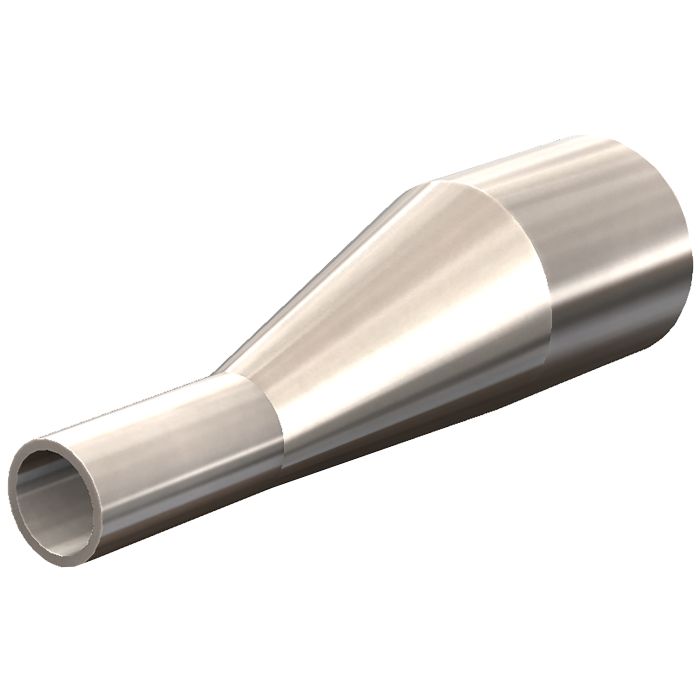

High purity eccentric reducer, 3" to 1" tube OD, weld x weld. Built to the ASME BPE standard with a PL finish, SF1 (32 Ra OD, 20 Ra ID) and full material traceability.
A validated line does not tolerate an unmarked fitting. This eccentric reducer carries its job number, heat number, surface finish code and ASME BPE marking, and steps 3" tube OD to 1".
- Size: 3" x 1" tube OD
- Material: 316L stainless steel, controlled sulphur to meet orbital welding specifications
- Surface finish: PL finish, SF1 (32 Ra OD, 20 Ra ID)
- Manufactured to the latest edition of the ASME BPE International Standard, Bioprocessing Equipment
- Meets 3-A Sanitary Standards for Sanitary Fittings, Number 63-03 (authorization number 621)
- End connections: weld x weld
- Marked with job number, 316L, part number, heat number, surface finish code and ASME BPE
- Material test report (MTR) included and traceable through the job number
- PL fittings are capped in blue to prevent damage and contamination
