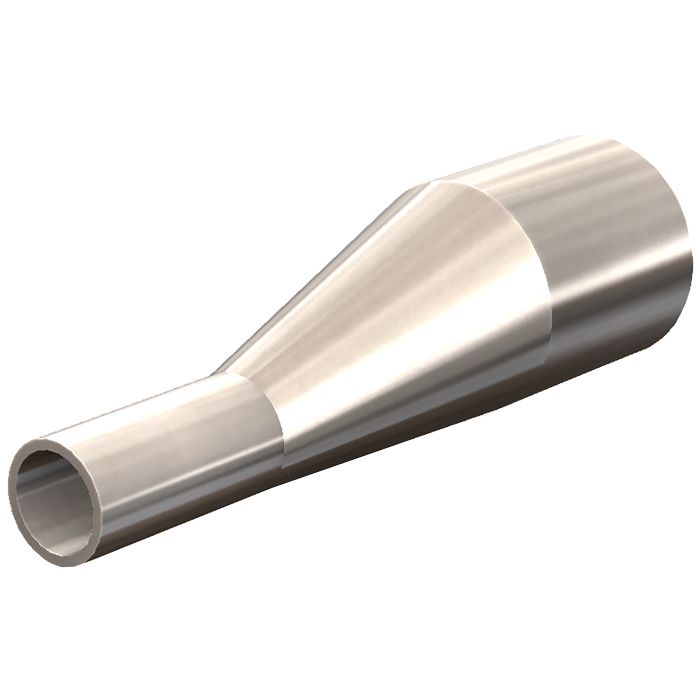

T32W-300150PL - Dixon 3" X 1-1/2" - BioPharm Weld x Weld Eccentric Reducer High Purity Stainless Steel - LJI Part: T32W-300150PL
SKU
T32W-300150PL
SKU
T32W-300150PL
$151.83
| Brand | : Dixon |
|---|---|
| Size | : 3 Inch X 1-1/2 Inch |
| Type | : Eccentric Reducers |
| Vendor Number | : T32W-300150PL |
ASME BPE eccentric reducer stepping 3" tube OD to 1-1/2" on weld x weld connections. 316L, PL finish, SF1 (32 Ra OD, 20 Ra ID), MTR included.
Dixon's Bradford High Purity BioPharm line covers the fittings that have to be certified rather than merely clean. Here that means a 3" x 1-1/2" eccentric reducer, weld x weld, finished to PL.
- Size: 3" x 1-1/2" tube OD
- Material: 316L stainless steel, controlled sulphur to meet orbital welding specifications
- Surface finish: PL finish, SF1 (32 Ra OD, 20 Ra ID)
- Manufactured to the latest edition of the ASME BPE International Standard, Bioprocessing Equipment
- Meets 3-A Sanitary Standards for Sanitary Fittings, Number 63-03 (authorization number 621)
- End connections: weld x weld
- Marked with job number, 316L, part number, heat number, surface finish code and ASME BPE
- Material test report (MTR) included and traceable through the job number
- PL fittings are capped in blue to prevent damage and contamination
