T32W-300200PL - Dixon 3" X 2" - BioPharm Weld x Weld Eccentric Reducer High Purity Stainless Steel - LJI Part: T32W-300200PL
SKU
T32W-300200PL
SKU
T32W-300200PL
$116.25
| Brand | : Dixon |
|---|---|
| Size | : 3 Inch X 2 Inch |
| Type | : Eccentric Reducers |
| Vendor Number | : T32W-300200PL |

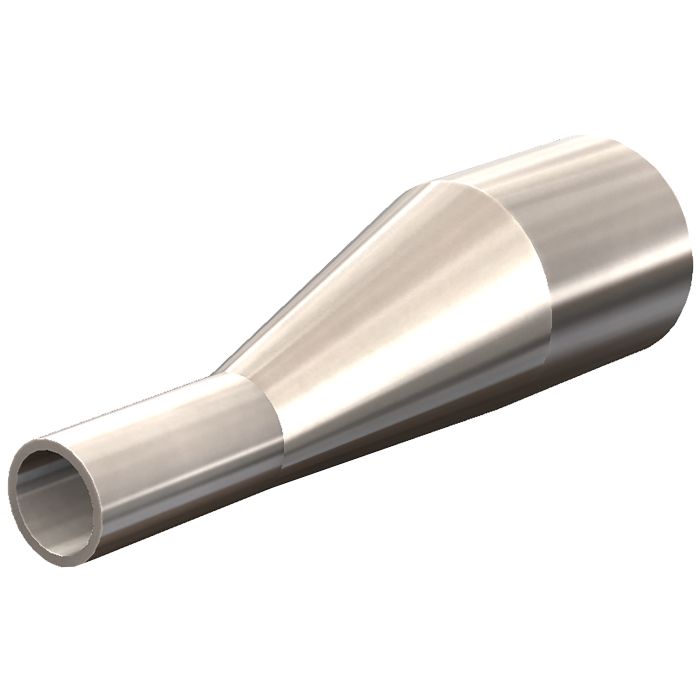

3" x 2" eccentric reducer from Dixon's Bradford BioPharm line, weld x weld ends, 316L with controlled sulphur and a PL finish, SF1 (32 Ra OD, 20 Ra ID).
Every fitting in the Bradford BioPharm line arrives with a material test report traceable through its job number. This eccentric reducer steps 3" tube OD down to 2", weld x weld.
- Size: 3" x 2" tube OD
- Material: 316L stainless steel, controlled sulphur to meet orbital welding specifications
- Surface finish: PL finish, SF1 (32 Ra OD, 20 Ra ID)
- Manufactured to the latest edition of the ASME BPE International Standard, Bioprocessing Equipment
- Meets 3-A Sanitary Standards for Sanitary Fittings, Number 63-03 (authorization number 621)
- End connections: weld x weld
- Marked with job number, 316L, part number, heat number, surface finish code and ASME BPE
- Material test report (MTR) included and traceable through the job number
- PL fittings are capped in blue to prevent damage and contamination
