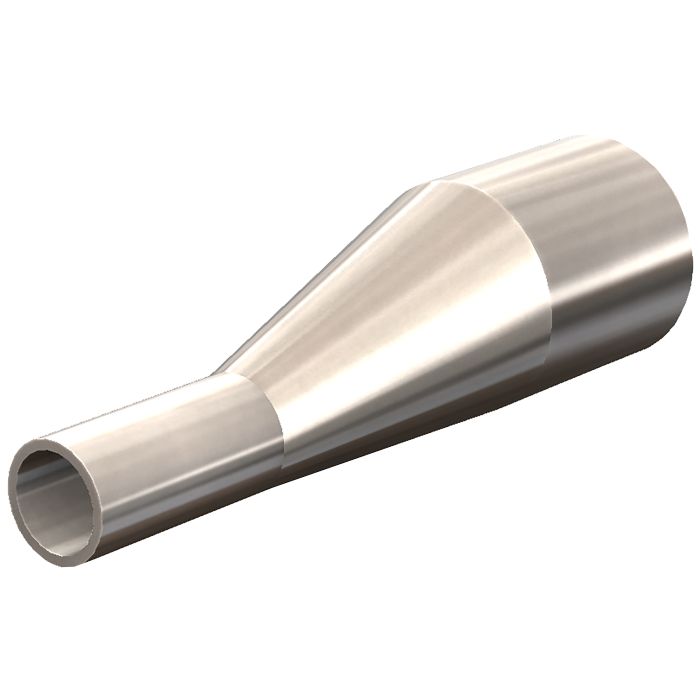

T32W-400100PL - Dixon 4" x 1" - BioPharm Weld x Weld Eccentric Reducer High Purity Stainless Steel - LJI Part: T32W-400100PL
SKU
T32W-400100PL
SKU
T32W-400100PL
$289.28
| Brand | : Dixon |
|---|---|
| Size | : 4 Inch X 1 Inch |
| Type | : Eccentric Reducers |
| Vendor Number | : T32W-400100PL |
Eccentric reducer, 4" x 1" tube OD, weld x weld ends. Part of Dixon's Bradford High Purity BioPharm line with a PL finish, SF1 (32 Ra OD, 20 Ra ID).
Orbital welding is unforgiving of inconsistent material, which is the whole reason the BioPharm line runs controlled-sulphur 316L. This 4" x 1" eccentric reducer connects weld x weld.
- Size: 4" x 1" tube OD
- Material: 316L stainless steel, controlled sulphur to meet orbital welding specifications
- Surface finish: PL finish, SF1 (32 Ra OD, 20 Ra ID)
- Manufactured to the latest edition of the ASME BPE International Standard, Bioprocessing Equipment
- Meets 3-A Sanitary Standards for Sanitary Fittings, Number 63-03 (authorization number 621)
- End connections: weld x weld
- Marked with job number, 316L, part number, heat number, surface finish code and ASME BPE
- Material test report (MTR) included and traceable through the job number
- PL fittings are capped in blue to prevent damage and contamination
