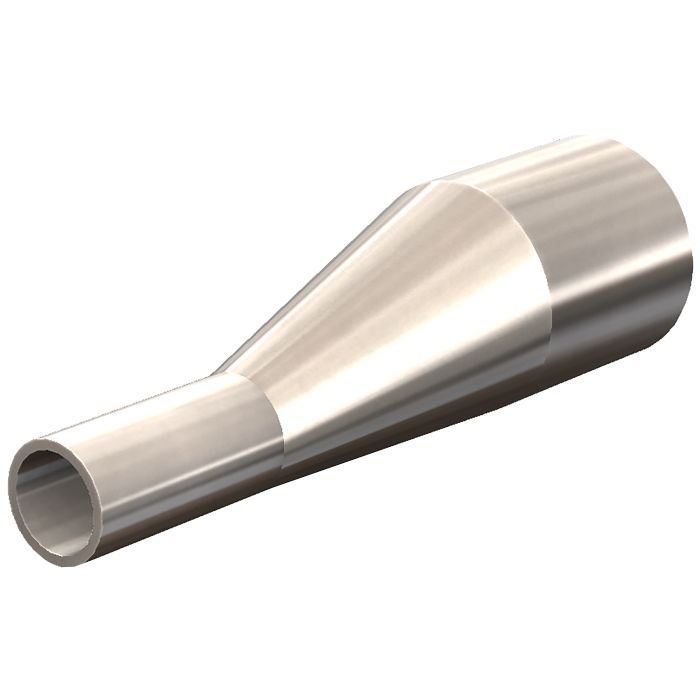

T32W-400150PM - Dixon 4" x 1-1/2" - BioPharm Weld x Weld Eccentric Reducer High Purity Stainless Steel - LJI Part: T32W-400150PM
SKU
T32W-400150PM
SKU
T32W-400150PM
$334.42
| Brand | : Dixon |
|---|---|
| Size | : 4 Inch X 1-1/2 Inch |
| Type | : Eccentric Reducers |
| Vendor Number | : T32W-400150PM |
High purity eccentric reducer, 4" to 1-1/2" tube OD, weld x weld. Built to the ASME BPE standard with a PM finish, SF4 and full material traceability.
In bioprocess piping the surface finish is part of the specification, not a preference. Dixon's Bradford High Purity BioPharm line is built to that standard, and this eccentric reducer carries a 4" tube OD line into 1-1/2" on weld x weld connections.
- Size: 4" x 1-1/2" tube OD
- Material: 316L stainless steel, controlled sulphur to meet orbital welding specifications
- Surface finish: PM finish, SF4
- Manufactured to the latest edition of the ASME BPE International Standard, Bioprocessing Equipment
- Meets 3-A Sanitary Standards for Sanitary Fittings, Number 63-03 (authorization number 621)
- End connections: weld x weld
- Marked with job number, 316L, part number, heat number, surface finish code and ASME BPE
- Material test report (MTR) included and traceable through the job number
- PM fittings are capped in white to prevent damage and contamination
