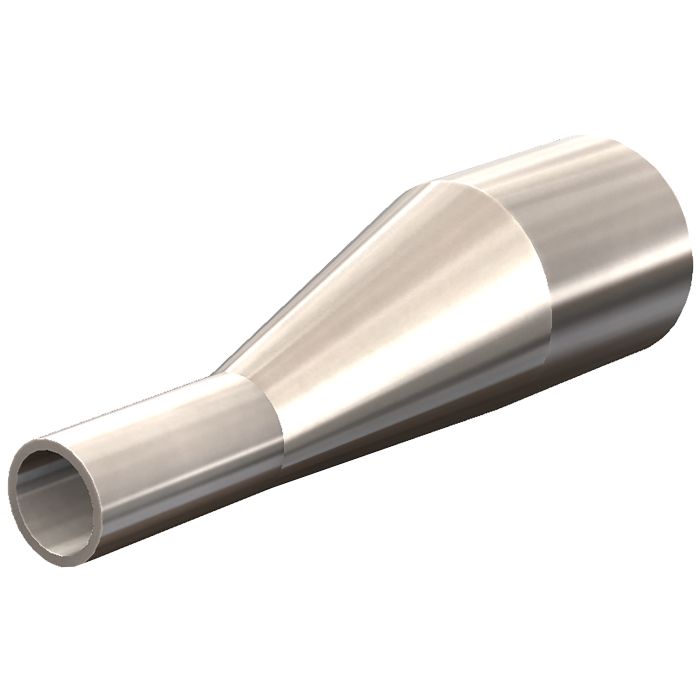

T32W-400200PM - Dixon 4" X 2" - BioPharm Weld x Weld Eccentric Reducer High Purity Stainless Steel - LJI Part: T32W-400200PM
SKU
T32W-400200PM
SKU
T32W-400200PM
$340.24
| Brand | : Dixon |
|---|---|
| Size | : 4 Inch X 2 Inch |
| Type | : Eccentric Reducers |
| Vendor Number | : T32W-400200PM |
ASME BPE eccentric reducer stepping 4" tube OD to 2" on weld x weld connections. 316L, PM finish, SF4, MTR included.
Orbital welding is unforgiving of inconsistent material, which is the whole reason the BioPharm line runs controlled-sulphur 316L. This 4" x 2" eccentric reducer connects weld x weld.
- Size: 4" x 2" tube OD
- Material: 316L stainless steel, controlled sulphur to meet orbital welding specifications
- Surface finish: PM finish, SF4
- Manufactured to the latest edition of the ASME BPE International Standard, Bioprocessing Equipment
- Meets 3-A Sanitary Standards for Sanitary Fittings, Number 63-03 (authorization number 621)
- End connections: weld x weld
- Marked with job number, 316L, part number, heat number, surface finish code and ASME BPE
- Material test report (MTR) included and traceable through the job number
- PM fittings are capped in white to prevent damage and contamination
