T32W-250150PL - Dixon 2-1/2" x 1-1/2" - BioPharm Weld x Weld Eccentric Reducer High Purity Stainless Steel - LJI Part: T32W-250150PL
SKU
T32W-250150PL
SKU
T32W-250150PL
$105.29
| Brand | : Dixon |
|---|---|
| Size | : 2-1/2 Inch X 1-1/2 Inch |
| Type | : Eccentric Reducers |
| Vendor Number | : T32W-250150PL |

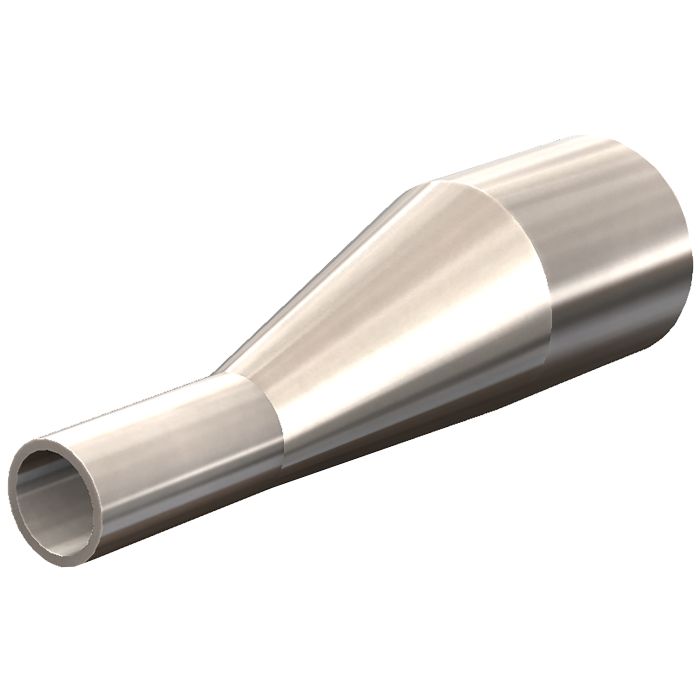

2-1/2" x 1-1/2" eccentric reducer from Dixon's Bradford BioPharm line, weld x weld ends, 316L with controlled sulphur and a PL finish, SF1 (32 Ra OD, 20 Ra ID).
A validated line does not tolerate an unmarked fitting. This eccentric reducer carries its job number, heat number, surface finish code and ASME BPE marking, and steps 2-1/2" tube OD to 1-1/2".
- Size: 2-1/2" x 1-1/2" tube OD
- Material: 316L stainless steel, controlled sulphur to meet orbital welding specifications
- Surface finish: PL finish, SF1 (32 Ra OD, 20 Ra ID)
- Manufactured to the latest edition of the ASME BPE International Standard, Bioprocessing Equipment
- Meets 3-A Sanitary Standards for Sanitary Fittings, Number 63-03 (authorization number 621)
- End connections: weld x weld
- Marked with job number, 316L, part number, heat number, surface finish code and ASME BPE
- Material test report (MTR) included and traceable through the job number
- PL fittings are capped in blue to prevent damage and contamination
