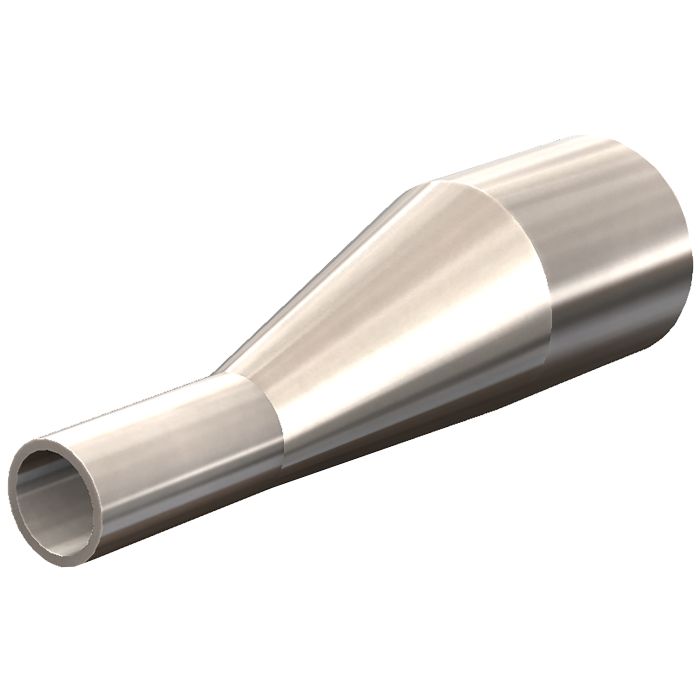

T32W-250150PM - Dixon 2-1/2" x 1-1/2" - BioPharm Weld x Weld Eccentric Reducer High Purity Stainless Steel - LJI Part: T32W-250150PM

Orbital welding is unforgiving of inconsistent material, which is the whole reason the BioPharm line runs controlled-sulphur 316L. This 2-1/2" x 1-1/2" eccentric reducer connects weld x weld.

• Size: 2-1/2" x 1-1/2" tube OD
• Material: 316L stainless steel, controlled sulphur to meet orbital welding specifications
• Surface finish: PM finish, SF4
• Manufactured to the latest edition of the ASME BPE International Standard, Bioprocessing Equipment
• Meets 3-A Sanitary Standards for Sanitary Fittings, Number 63-03 (authorization number 621)
• End connections: weld x weld
• Marked with job number, 316L, part number, heat number, surface finish code and ASME BPE
• Material test report (MTR) included and traceable through the job number
• PM fittings are capped in white to prevent damage and contamination
