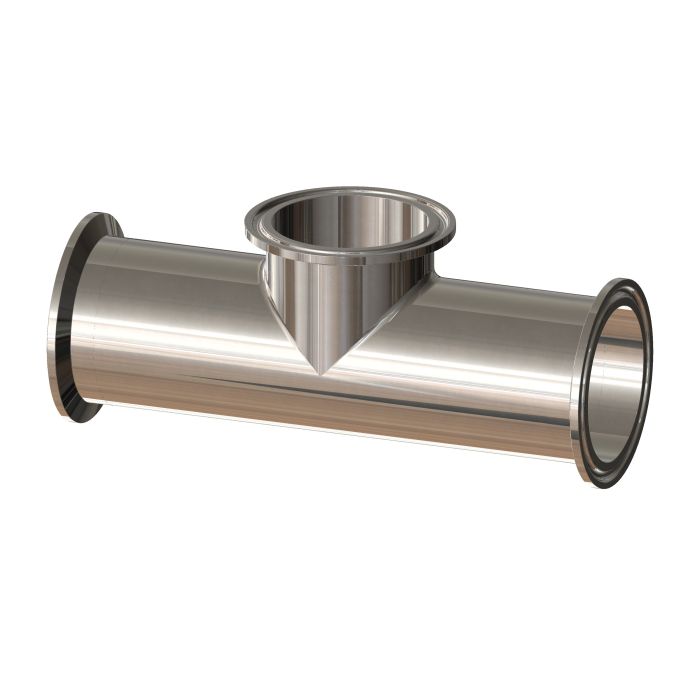

T7MPS-150PM - Dixon 1-1/2" - BioPharm Clamp Short Outlet Tee - LJI Part: T7MPS-150PM

Branching a validated line means the tee has to carry the same finish, the same material certification and the same markings as the tube it joins. This 1-1/2" short outlet tee connects clamp x clamp x clamp.

• Size: 1-1/2" tube OD
• Type: short outlet tee
• End connections: clamp x clamp x clamp
• Surface finish: PM finish, SF4
• Material: 316L stainless steel, controlled sulphur to meet orbital welding specifications
• Manufactured to the latest edition of the ASME BPE International Standard, Bioprocessing Equipment
• Meets 3-A Sanitary Standards for Sanitary Fittings, Number 63-03 (authorization number 621)
• Marked with job number, 316L, part number, heat number, surface finish code and ASME BPE
• Material test report (MTR) included and traceable through the job number
• PM fittings are capped in white to prevent damage and contamination
