T7MPS-200PM - Dixon 2" - BioPharm Clamp Short Outlet Tee - LJI Part: T7MPS-200PM
SKU
T7MPS-200PM
SKU
T7MPS-200PM
$154.17
| Brand | : Dixon |
|---|---|
| Size | : 2 Inch |
| Material | : 316 Stainless Steel |
| Vendor Number | : T7MPS-200PM |

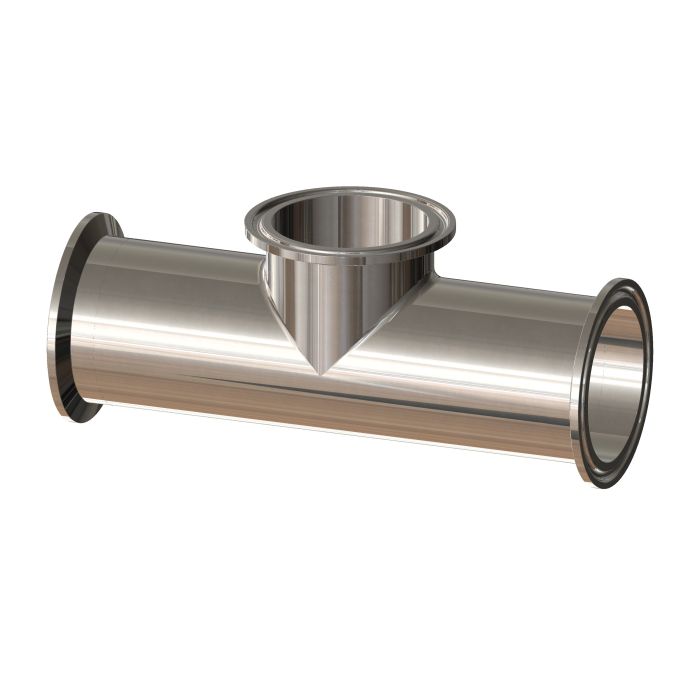

A 2" short outlet tee for bioprocess and pharma service, clamp x clamp x clamp, built to the ASME BPE standard.
Every Bradford BioPharm fitting arrives marked with its job number and heat number, and with an MTR in the bag. This 2" short outlet tee connects clamp x clamp x clamp.
- Size: 2" tube OD
- Type: short outlet tee
- End connections: clamp x clamp x clamp
- Surface finish: PM finish, SF4
- Material: 316L stainless steel, controlled sulphur to meet orbital welding specifications
- Manufactured to the latest edition of the ASME BPE International Standard, Bioprocessing Equipment
- Meets 3-A Sanitary Standards for Sanitary Fittings, Number 63-03 (authorization number 621)
- Marked with job number, 316L, part number, heat number, surface finish code and ASME BPE
- Material test report (MTR) included and traceable through the job number
- PM fittings are capped in white to prevent damage and contamination
