T7MPS-075PL - Dixon 3/4" - BioPharm Clamp Short Outlet Tee - LJI Part: T7MPS-075PL
SKU
T7MPS-075PL
SKU
T7MPS-075PL
$68.66
| Brand | : Dixon |
|---|---|
| Size | : 3/4 Inch |
| Material | : 316 Stainless Steel |
| Vendor Number | : T7MPS-075PL |

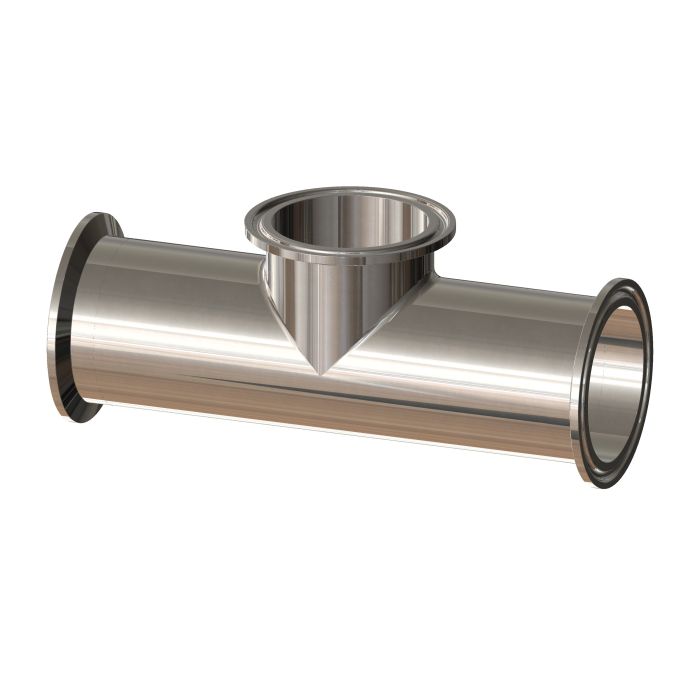

Dixon Bradford BioPharm short outlet tee, 3/4", clamp x clamp x clamp. 316L for orbital welding with a PL finish, SF1 (32 Ra OD, 20 Ra ID).
Controlled sulphur is what makes 316L weld predictably on an orbital head, and it is why the BioPharm line specifies it. This 3/4" short outlet tee connects clamp x clamp x clamp.
- Size: 3/4" tube OD
- Type: short outlet tee
- End connections: clamp x clamp x clamp
- Surface finish: PL finish, SF1 (32 Ra OD, 20 Ra ID)
- Material: 316L stainless steel, controlled sulphur to meet orbital welding specifications
- Manufactured to the latest edition of the ASME BPE International Standard, Bioprocessing Equipment
- Meets 3-A Sanitary Standards for Sanitary Fittings, Number 63-03 (authorization number 621)
- Marked with job number, 316L, part number, heat number, surface finish code and ASME BPE
- Material test report (MTR) included and traceable through the job number
- PL fittings are capped in blue to prevent damage and contamination
