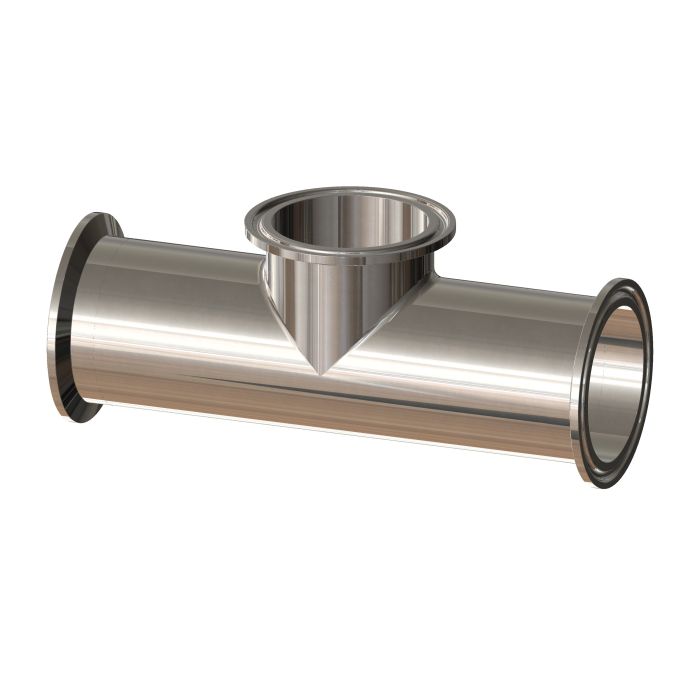

T7MPS-300PM - Dixon 3" - BioPharm Clamp Short Outlet Tee - LJI Part: T7MPS-300PM
SKU
T7MPS-300PM
SKU
T7MPS-300PM
$234.90
| Brand | : Dixon |
|---|---|
| Size | : 3 Inch |
| Material | : 316 Stainless Steel |
| Vendor Number | : T7MPS-300PM |
Branches a high purity line in 3". Bradford BioPharm short outlet tee, clamp x clamp x clamp, finished to PM.
Controlled sulphur is what makes 316L weld predictably on an orbital head, and it is why the BioPharm line specifies it. This 3" short outlet tee connects clamp x clamp x clamp.
- Size: 3" tube OD
- Type: short outlet tee
- End connections: clamp x clamp x clamp
- Surface finish: PM finish, SF4
- Material: 316L stainless steel, controlled sulphur to meet orbital welding specifications
- Manufactured to the latest edition of the ASME BPE International Standard, Bioprocessing Equipment
- Meets 3-A Sanitary Standards for Sanitary Fittings, Number 63-03 (authorization number 621)
- Marked with job number, 316L, part number, heat number, surface finish code and ASME BPE
- Material test report (MTR) included and traceable through the job number
- PM fittings are capped in white to prevent damage and contamination
