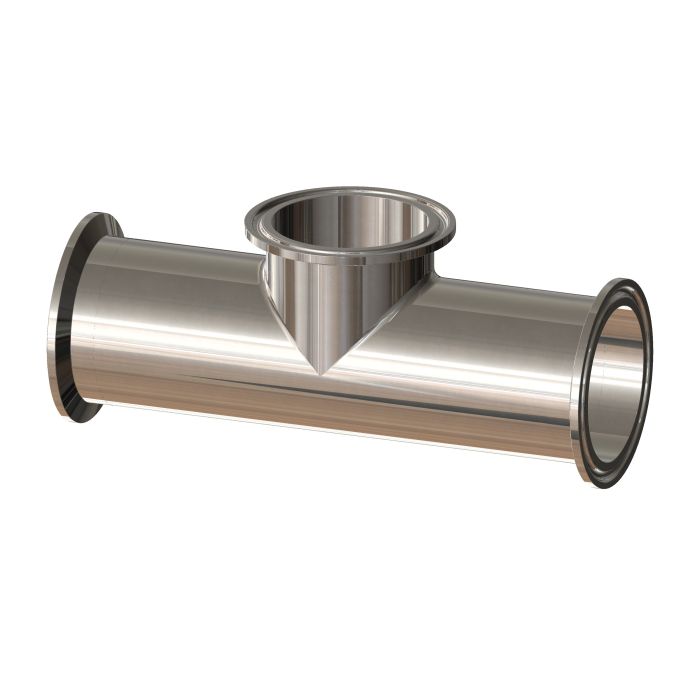

T7MPS-400PL - Dixon 4" - BioPharm Clamp Short Outlet Tee - LJI Part: T7MPS-400PL

Pharmaceutical, bioprocessing and semiconductor lines specify the fitting as tightly as the tube. This short outlet tee is 4", clamp x clamp x clamp, finished to PL.

• Size: 4" tube OD
• Type: short outlet tee
• End connections: clamp x clamp x clamp
• Surface finish: PL finish, SF1 (32 Ra OD, 20 Ra ID)
• Material: 316L stainless steel, controlled sulphur to meet orbital welding specifications
• Manufactured to the latest edition of the ASME BPE International Standard, Bioprocessing Equipment
• Meets 3-A Sanitary Standards for Sanitary Fittings, Number 63-03 (authorization number 621)
• Marked with job number, 316L, part number, heat number, surface finish code and ASME BPE
• Material test report (MTR) included and traceable through the job number
• PL fittings are capped in blue to prevent damage and contamination
