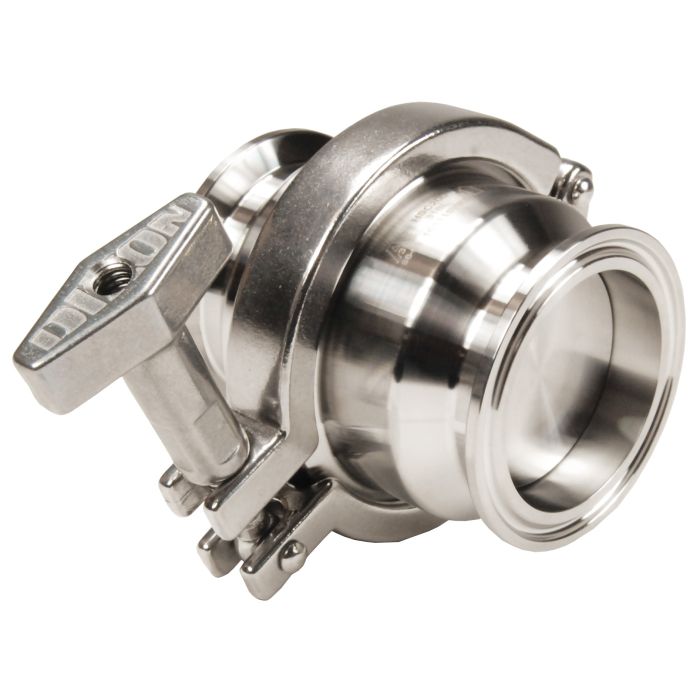

HSCV150BB - Dixon 1-1/2" - HSC Series Sanitary Spring Check Valve with Weld Connections and FKM seal - LJI Part: HSCV150BB
SKU
HSCV150BB
SKU
HSCV150BB
$271.63
| Brand | : Dixon |
|---|---|
| Size | : 1-1/2 Inch |
| Type | : Valves |
| Material | : 316 Stainless Steel |
| Vendor Number | : HSCV150BB |
1-1/2" concentric spring check valve, butt weld ends, Viton (FKM) seals. 316L machined from solid bar, 145 psi, field serviceable.
The concentric design suits vertical runs. This 1-1/2" valve uses Viton (FKM) seals and butt weld connections, and it comes apart in the line for service without special tools.
- Size: 1-1/2"
- Type: concentric spring check valve
- End connections: butt weld
- Seal material: Viton (FKM)
- Cracking pressure varies by valve size
- Material: 316L stainless steel
- Maximum operating pressure: 145 psi
- Temperature range: 15°F to 200°F
- Finish: sanitary polish, 32 Ra
- Machined from solid bar with a single piece upper body spider design
- Standard O-ring and gasket seal design
- Field serviceable, no special tools required
- Meets 3A sanitary requirements
- Suitable for low and medium viscosity fluids
- Repair kits available for worn gaskets and O-rings
