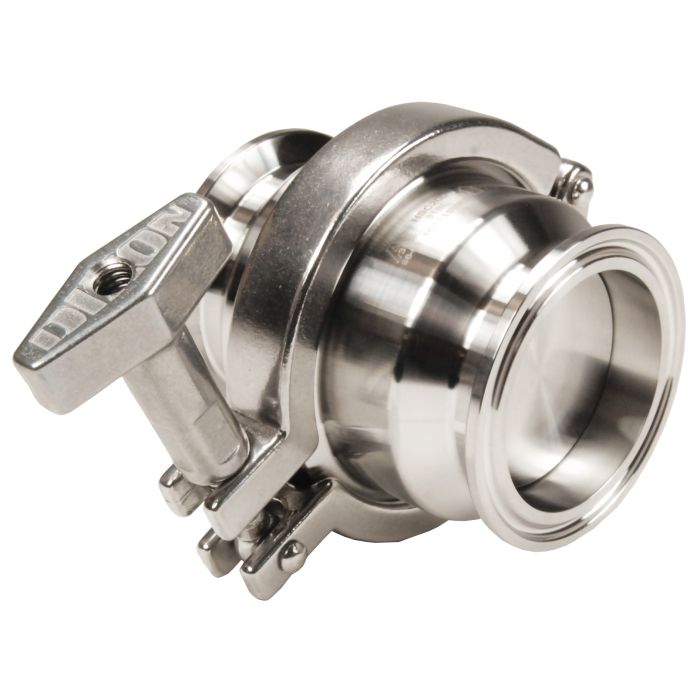

HSCE050BB - Dixon 1/2" - HSC Series Sanitary Spring Check Valve with Weld Connections and EPDM seal - LJI Part: HSCE050BB

Dixon machines the HSC series from solid bar rather than assembling it from castings, and the upper body spider is a single piece. Fewer joints means fewer places for product to lodge. The concentric design suits vertical runs.

• Size: 1/2"
• Type: concentric spring check valve
• End connections: butt weld
• Seal material: EPDM
• Cracking pressure varies by valve size
• Material: 316L stainless steel
• Maximum operating pressure: 145 psi
• Temperature range: 15°F to 200°F
• Finish: sanitary polish, 32 Ra
• Machined from solid bar with a single piece upper body spider design
• Standard O-ring and gasket seal design
• Field serviceable, no special tools required
• Meets 3A sanitary requirements
• Suitable for low and medium viscosity fluids
• Repair kits available for worn gaskets and O-rings
• Note: 1/2" and 3/4" are not rated for CIP and must be cleaned manually
