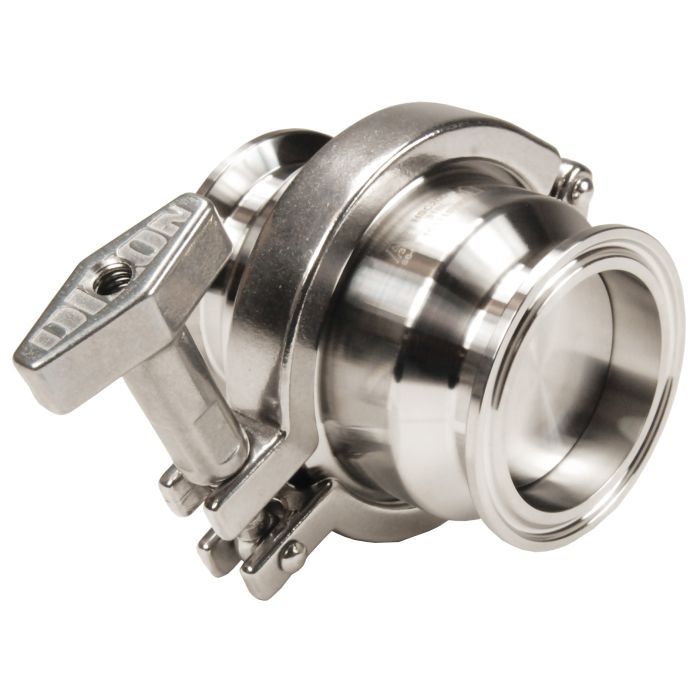

HSCV200BB - Dixon 2" - HSC Series Sanitary Spring Check Valve with Weld Connections and FKM seal - LJI Part: HSCV200BB

Viton (FKM) seals and a 32 Ra sanitary polish put this valve in the same specification as the tube around it. 2", butt weld ends, 145 psi. The concentric design suits vertical runs.

• Size: 2"
• Type: concentric spring check valve
• End connections: butt weld
• Seal material: Viton (FKM)
• Cracking pressure varies by valve size
• Material: 316L stainless steel
• Maximum operating pressure: 145 psi
• Temperature range: 15°F to 200°F
• Finish: sanitary polish, 32 Ra
• Machined from solid bar with a single piece upper body spider design
• Standard O-ring and gasket seal design
• Field serviceable, no special tools required
• Meets 3A sanitary requirements
• Suitable for low and medium viscosity fluids
• Repair kits available for worn gaskets and O-rings
