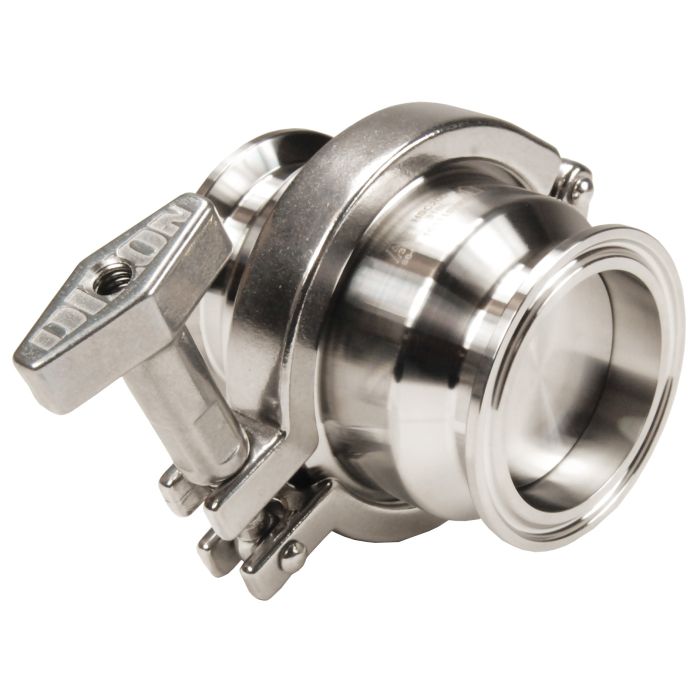

HSCE075BB - Dixon 3/4" - HSC Series Sanitary Spring Check Valve with Weld Connections and EPDM seal - LJI Part: HSCE075BB

The concentric design suits vertical runs. This 3/4" valve uses EPDM seals and butt weld connections, and it comes apart in the line for service without special tools.

• Size: 3/4"
• Type: concentric spring check valve
• End connections: butt weld
• Seal material: EPDM
• Cracking pressure varies by valve size
• Material: 316L stainless steel
• Maximum operating pressure: 145 psi
• Temperature range: 15°F to 200°F
• Finish: sanitary polish, 32 Ra
• Machined from solid bar with a single piece upper body spider design
• Standard O-ring and gasket seal design
• Field serviceable, no special tools required
• Meets 3A sanitary requirements
• Suitable for low and medium viscosity fluids
• Repair kits available for worn gaskets and O-rings
• Note: 1/2" and 3/4" are not rated for CIP and must be cleaned manually
