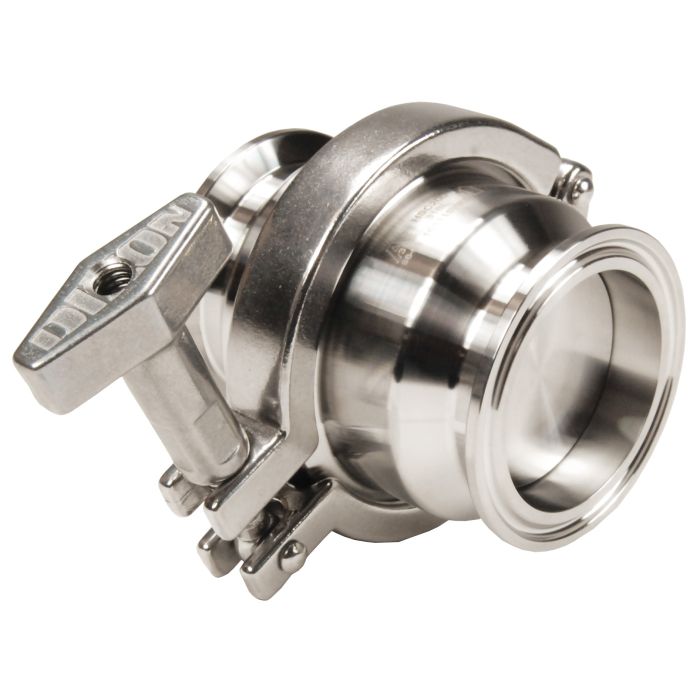

HSCV300 - Dixon 3" - HSC Series Sanitary Spring Check Valve with Clamp Connections and FKM seal - LJI Part: HSCV300
SKU
HSCV300
SKU
HSCV300
$514.90
| Brand | : Dixon |
|---|---|
| Size | : 3 Inch |
| Type | : Valves |
| Material | : 316 Stainless Steel |
| Vendor Number | : HSCV300 |
Reverse flow protection in 3" sanitary line. The concentric design suits vertical runs. Viton (FKM) seals, clamp ends.
The concentric design suits vertical runs. This 3" valve uses Viton (FKM) seals and clamp connections, and it comes apart in the line for service without special tools.
- Size: 3"
- Type: concentric spring check valve
- End connections: clamp
- Seal material: Viton (FKM)
- Cracking pressure varies by valve size
- Material: 316L stainless steel
- Maximum operating pressure: 145 psi
- Temperature range: 15°F to 200°F
- Finish: sanitary polish, 32 Ra
- Machined from solid bar with a single piece upper body spider design
- Standard O-ring and gasket seal design
- Field serviceable, no special tools required
- Meets 3A sanitary requirements
- Suitable for low and medium viscosity fluids
- Repair kits available for worn gaskets and O-rings
