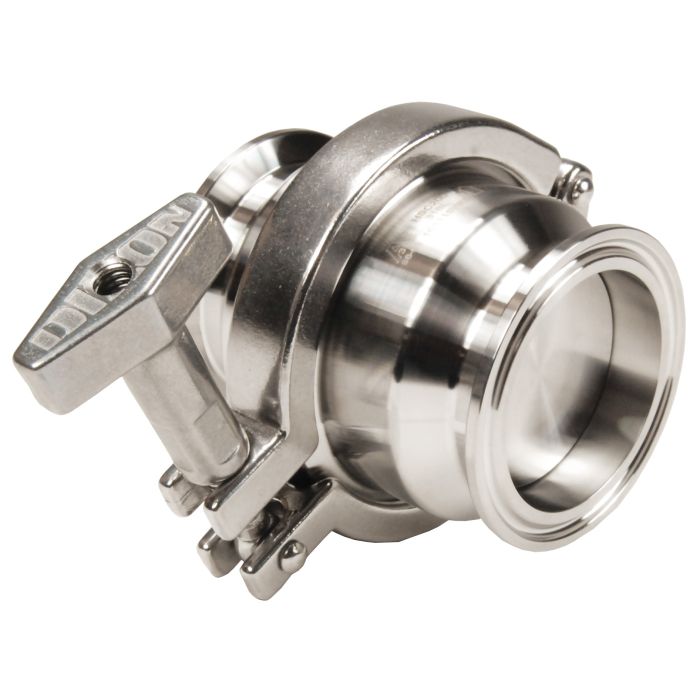

HSCV300BB - Dixon 3" - HSC Series Sanitary Spring Check Valve with Weld Connections and FKM seal - LJI Part: HSCV300BB

Sized 3" with butt weld connections, this valve opens on forward pressure and shuts as soon as that pressure drops. Repair kits cover the gaskets and O-rings when they eventually wear. The concentric design suits vertical runs.

• Size: 3"
• Type: concentric spring check valve
• End connections: butt weld
• Seal material: Viton (FKM)
• Cracking pressure varies by valve size
• Material: 316L stainless steel
• Maximum operating pressure: 145 psi
• Temperature range: 15°F to 200°F
• Finish: sanitary polish, 32 Ra
• Machined from solid bar with a single piece upper body spider design
• Standard O-ring and gasket seal design
• Field serviceable, no special tools required
• Meets 3A sanitary requirements
• Suitable for low and medium viscosity fluids
• Repair kits available for worn gaskets and O-rings
