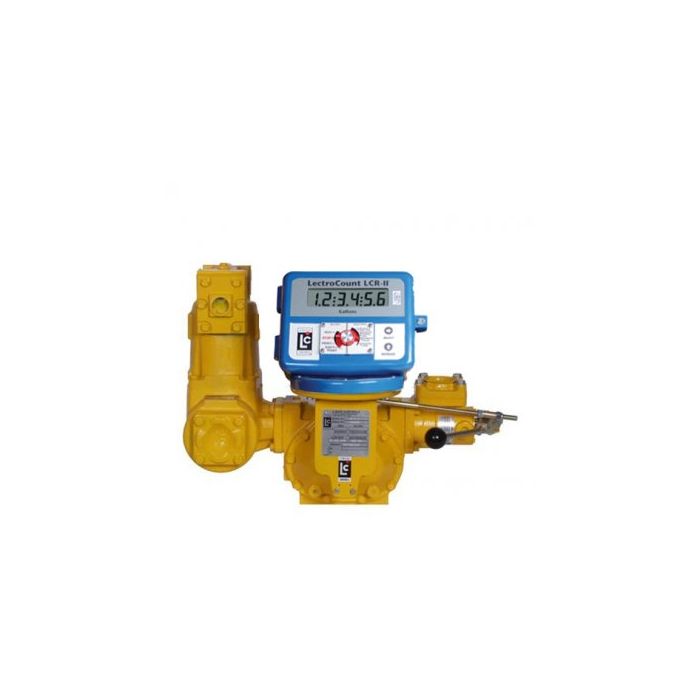

M7K1-LCR2-I#26 - Liquid Controls - M7K1 Meter, LCR-II, with Electronic Register. Right to Left Flow - LJI Part: M7K1-LCR2-I#26

M7K1 meter system from Liquid Controls, built on the M7 rotary positive displacement platform with electronic LCR2 registration and an internal pulser. Flow runs right to left in 1/10 gallon increments, with Buna seals, a block valve, mechanical air eliminator, metal inlet, and a hi-cap 40 mesh strainer; the system carries NIST conformance. The M7 element uses three synchronized rotors that turn with no metal-to-metal contact, so hydraulic sealing comes from a stationary boundary layer of liquid rather than wiping mechanical parts, which keeps accuracy from deteriorating with wear.

• Flow Rate: 100 GPM (378 LPM)
• Maximum Pressure: 150 psi (10.3 bar)
• Flange Size: 1-1/2 and 2 inch
• Flow Direction: Right to left
• Resolution: 1/10 gallon
• Seal Material: Buna
• Strainer: Hi-cap, 40 mesh
• Register: LCR2, internal pulser
• Standard: NIST conformance
• Temperature Range: -40F to 160F
