M7K1-LCR2-I#46 - Liquid Controls - M7K1 LCR-II Meter, Electronic Register with Right to Left Flow. - LJI Part: M7K1-LCR2-I#46

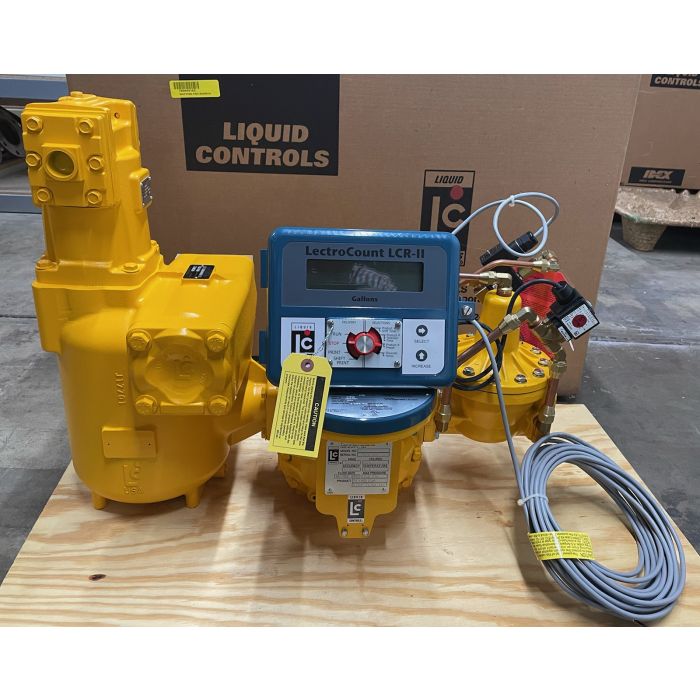

This M7K1 meter from Liquid Controls runs on the M7 rotary positive displacement platform, outfitted with an electronic LCR2 register, internal pulser, and solenoid valve. It meters left to right in 1/10 gallon increments, backed by a hi-cap 40 mesh strainer, mechanical air eliminator, and a face-down printer, with cables included. Because the M7 element's three rotors turn with no metal-to-metal contact, hydraulic sealing relies on a stationary boundary layer of liquid instead of wearing mechanical parts, so accuracy holds up over the meter's service life.

• Flow Rate: 100 GPM (378 LPM)
• Maximum Pressure: 150 psi (10.3 bar)
• Flange Size: 1-1/2 and 2 inch
• Flow Direction: Left to right
• Resolution: 1/10 gallon
• Strainer: Hi-cap, 40 mesh
• Register: LCR2, internal pulser
• Valve: Solenoid
• Printer Orientation: Face-down
• Temperature Range: -40F to 160F
