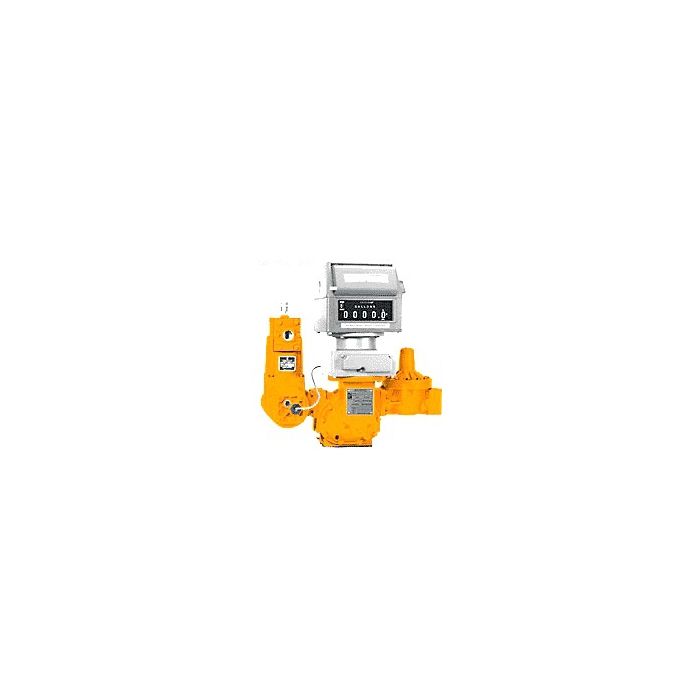

M7N1-MECH-NP#1 - Liquid Controls - M7N1 Meter with mechanical register. Left to Right Flow. - LJI Part: M7N1-MECH-NP#1

The M7N1 meter system from Liquid Controls runs mechanical registration without a pulser, metering left to right in 1/10 gallon increments on a 2 inch flange. Buna seals, a mechanical valve, standard 40 mesh strainer, mechanical eliminator, and 5-digit preset make up the system, with a face-down printer and cables included. Like other members of the M7 line, its three rotors turn with no metal-to-metal contact, so hydraulic sealing comes from a stationary liquid boundary layer rather than wearing mechanical parts, keeping recalibration needs low over time.

• Flow Rate: 100 GPM (378 LPM)
• Maximum Pressure: 150 psi (10.3 bar)
• Flange Size: 2 inch
• Flow Direction: Left to right
• Resolution: 1/10 gallon
• Seal Material: Buna
• Strainer: Standard, 40 mesh
• Preset: Mechanical, 5-digit
• Registration: Mechanical, no pulser
• Temperature Range: -40F to 160F
