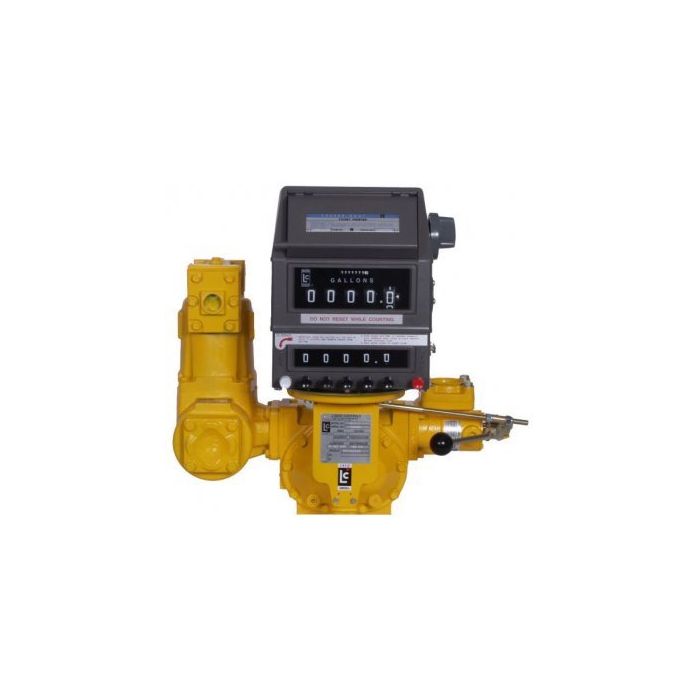

M7N1-MECH-NP#2 - Liquid Controls M7N1 Meter with mechanical register. Left to Right Flow. - LJI Part: M7N1-MECH-NP#2

Liquid Controls M7, rotary motion positive displacement (PD) with Mechanical Registration and without Pulsers. Meters offer the ultimate in measurement accuracy. LC meters incorporate a unique design, presenting minimal intrusion in a flowing stream of liquid, as well as minimal pressure drop through the meter. The LC meter consists of a housing in which three synchronized rotors turn with no metal-to-metal contact. Hydraulic sealing is accomplished by a stationary boundary layer of liquid, not by the wiping action of mechanical parts.

• 100 GPM / 380 LPM
• Rated to 150psi / 10.5 BAR.
• 2" NPT Standard Flange Size
• Low pressure drop-will operate on gravity flow or pump pressure.
• Sustained accuracy-no wear from metal-to-metal contact inside the measuring chamber means minimal deterioration in accuracy over time, fewer recalibrations, and longer service life. Meters conform to NIST and International Weights and Measures accuracy requirements.
• Wide temperature range-products can be metered accurately from -40 F (-40 C) to 160 F (71 C).
• Wide viscosity range-LC meters can accurately meter products from less than 30 SSU (less than 1 centipoise) to 1,500,000 SSU (325,000 centipoise).
• Maximum adaptability-right angle design with choice of stock or custom elbows/ fittings provides unequaled mounting flexibility to meet your installation requirements.
,
