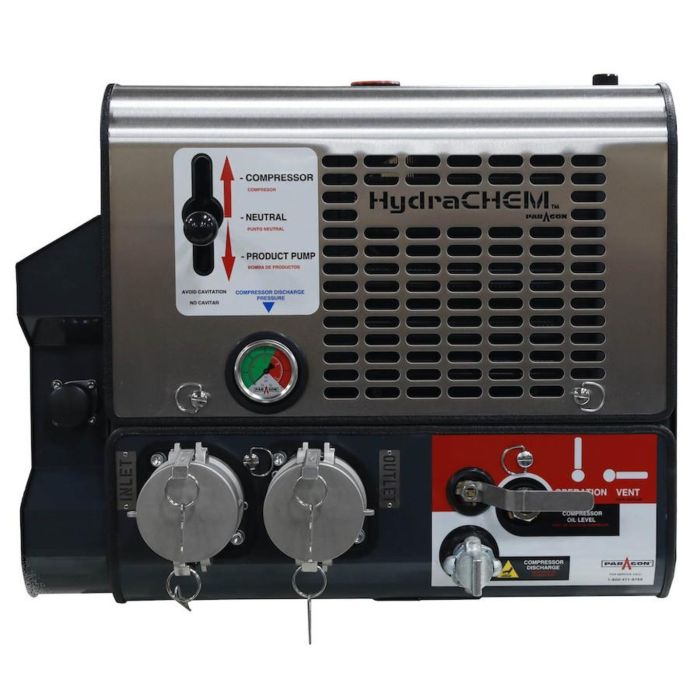

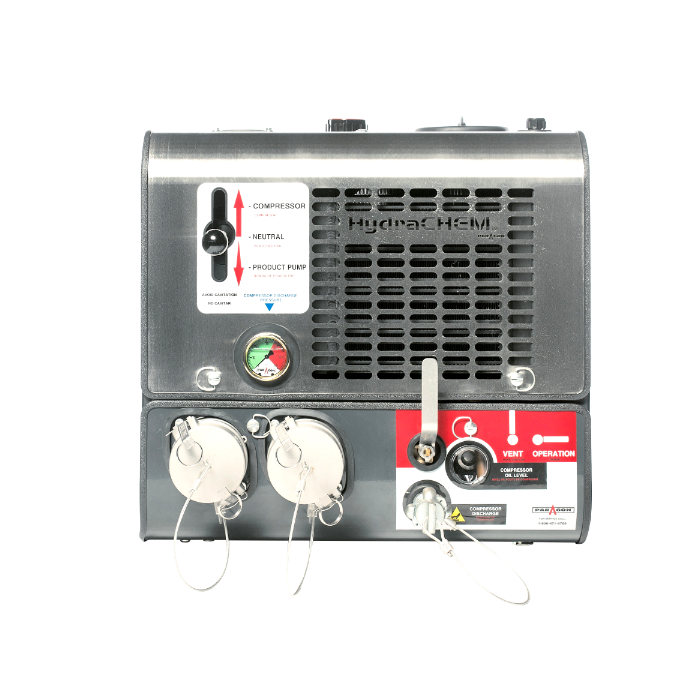

The Paragon HydraCHEM HCOGNHHHHX-00 is an all-in-one liquid bulk transfer system that combines an air compressor, hydraulic circuit, and product pump into a single, compact, enclosed unit, eliminating the need for separate installations of each component. This single-spool configuration is built around the G125 Cast Iron Gear Pump, delivering flow rates up to 125 GPM and discharge pressures up to 125 PSI with a chemical temperature range of -10F to 400F. The pump uses bronze bearings with a steel shaft and a triple lip seal configuration. The system requires only 24 inches of frame rail space and just two hydraulic hose connections, reducing installation time by approximately 4 hours compared to traditional setups. All operator controls are centrally located and clearly labeled, with a fully enclosed, stainless steel-covered design that protects the operator from rotating equipment, high-pressure oil, and product exposure. This configuration terminates in 3-inch stainless steel male camlock fittings.
Technical Specs List
- System Type: HydraCHEM All-in-One Liquid Bulk Transfer System, Single Spool
- Pump Model: G125 Cast Iron Gear Pump
- Pump Flow Rate: Up to 125 GPM
- Pump Discharge Pressure: Up to 125 PSI
- Chemical Temperature Range: -10F to 400F
- Bearing Material: Bronze
- Shaft Material: Steel
- Seal Type: Triple Lip Seal
- Air Compressor Output: Up to 36 PSI
- Hydraulic Oil Capacity: 2.5 gallons
- Frame Rail Space Required: 24 inches
- Outlet Connection: 3-inch Stainless Steel Male Camlock
